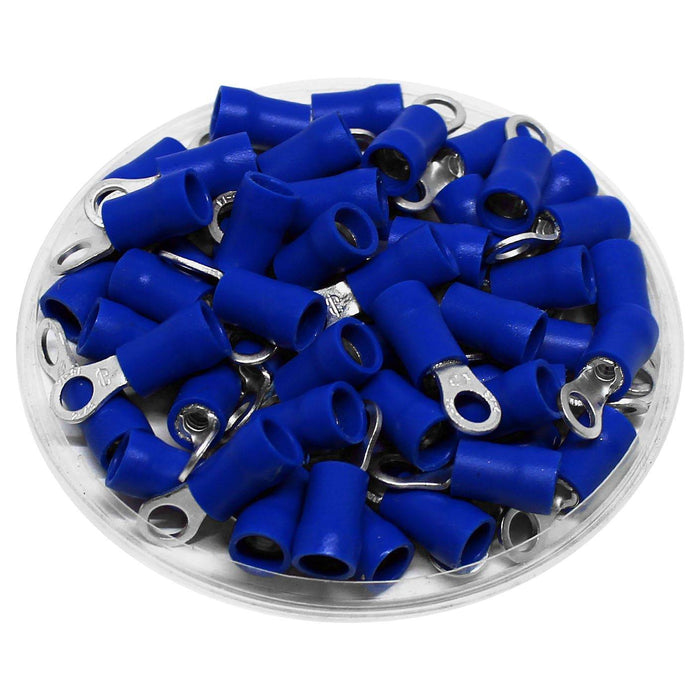

RDS2-4 - Double Crimp Vinyl Insulated Ring Terminals - 16 AWG to 14 AWG
Precio original
$8.88
-
Precio original
$8.88
Precio original
$8.88
$8.88
-
$8.88
Precio actual
$8.88
SKU RDS2-4
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
| PRODUCT DESCRIPTION | |||
|
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing potection to the crimp joint. Color coded according to industry standards. |
|||
| DIMENSIONS AND FEATURES | |||
| Wire Range: | 16-14 AWG | Color: | Blue |
| T: | 0.8mm (.03") | Terminal Material: | Tin-Plated Copper |
| L: | 19.9mm (0.78") | Insulation Material: | Vinyl |
| F: | 6.3mm (0.25") | Stud Size: | #8 |
| E: | 10.5mm (0.41") | Temperature Rating: | 1050C |
| W: | 6.6mm (0.26") | Voltage Rating: | 600 Volts |
| D: | 5mm (0.20") | UL Recognized: | Yes |
| D1: | 2.3mm (.09") | CE Certified: | Yes |
| D2: | 4.3mm (.17) | RoHS Compliant | Yes |
|
TECHNICAL DRAWING |
|||
 |
|||
