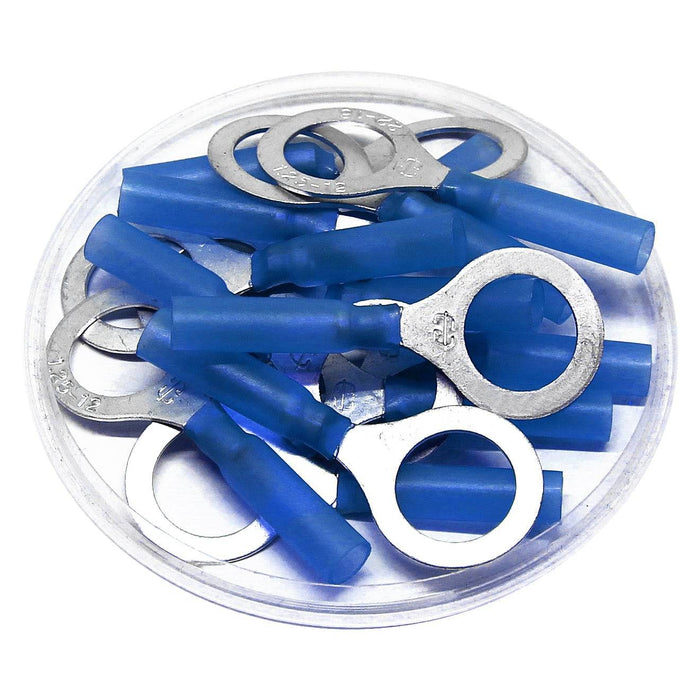

16 to 14 AWG Heat Shrink Ring Terminals, 1/2" Stud, Polyethylene, 25 Pieces - RHT2-12
Precio original
$10.00
-
Precio original
$10.00
Precio original
$10.00
$10.00
-
$10.00
Precio actual
$10.00
SKU RHT2-12
Disponibilidad:
en stock, listo para ser enviado
HEAT SHRINKABLE RING TERMINALS
Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
Wire Size: | 16 to 14 AWG |
Stud Size: | 1/2" Stud |
Color: | Blue |
L: | 44.1mm (1.74") |
D2: |
13mm (0.51") |
W: | 19.2mm (0.76") |
Material: | Tin Plated Copper |
Insulation: | Polyethylene |
Max Electrical Rating: | 600 Volts |
Temperature Rating: | -67°F to 221°F (-55°C to 105°C) |
CE Certified: | Yes |
RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
