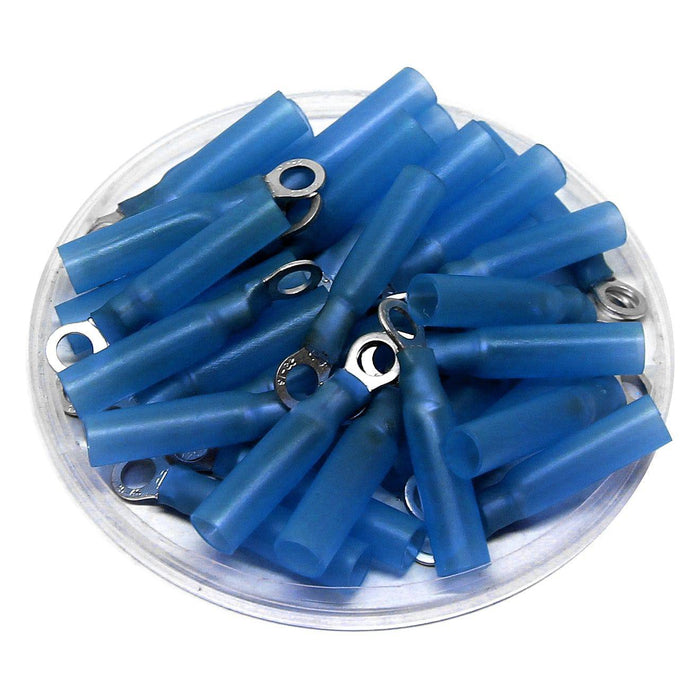

16 to 14 AWG Heat Shrink Ring Terminals, #4 Stud, Polyethylene, 25 Pieces - RHT2-3.2

Precio original $7.16 - Precio original $7.16
Precio original
$7.16
$7.16 - $7.16
Precio actual $7.16
SKU RHT2-32
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 25 Pieces

HEAT SHRINKABLE RING TERMINALS

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 16 to 14 AWG
Stud Size: #4 Stud
Color: Blue
L: 26.5mm (1.04")
D2:
3.2mm (0.13")
W: 6.6mm (0.26")
Material: Tin Plated Copper
Insulation: Polyethylene
Max Electrical Rating: 600 Volts
Temperature Rating: -67°F to 221°F (-55°C to 105°C)
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None
