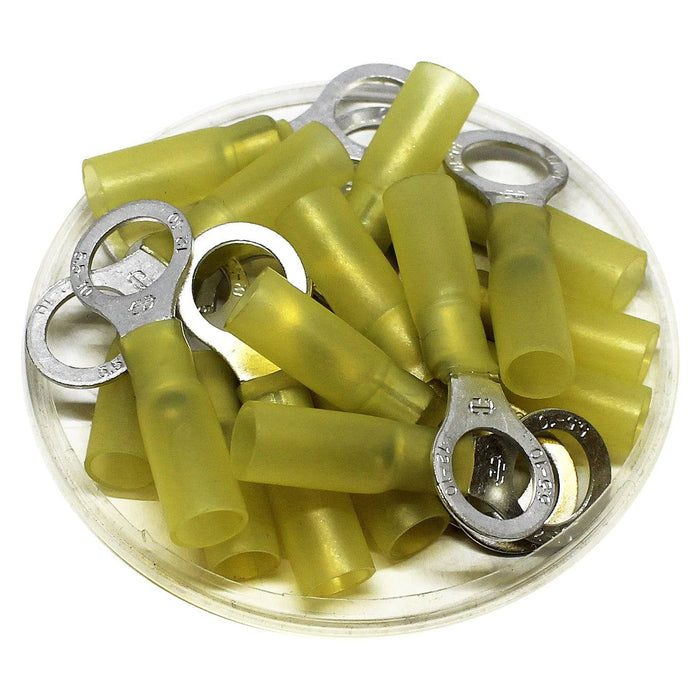

12 to 10 AWG Heat Shrink Ring Terminals, 3/8" Stud, Polyethylene, 25 Pieces - RHT5-10

Precio original $3.12 - Precio original $3.12
Precio original
$3.12
$3.12 - $3.12
Precio actual $3.12
SKU RHT5-10
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 10 Pieces

HEAT SHRINKABLE RING TERMINALS

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 12 to 10 AWG
Stud Size: 3/8" Stud
Color: Yellow
L: 42.2mm (1.66")
D2:
10.5mm (0.41")
W: 15mm (0.59")
Material: Tin Plated Copper
Insulation: Polyethylene
Max Electrical Rating: 600 Volts
Temperature Rating: -67°F to 221°F (-55°C to 105°C)
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
