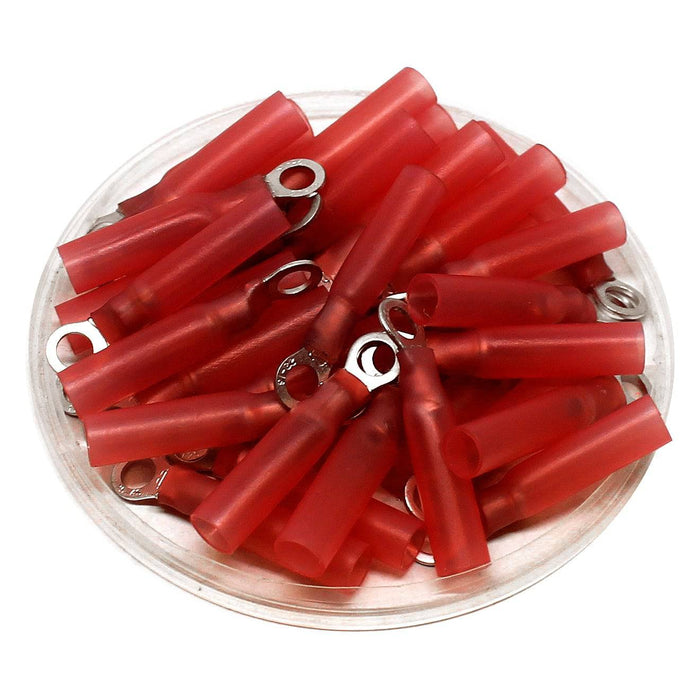

22 to 16 AWG Heat Shrink Ring Terminals, #8 Stud, Polyethylene, 25 Pieces - RHTS1-4

Precio original $5.52 - Precio original $5.52
Precio original
$5.52
$5.52 - $5.52
Precio actual $5.52
SKU RHTS1-4
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 25 Pieces

HEAT SHRINKABLE RING TERMINALS

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 22 to 16 AWG
Stud Size: #8 Stud
Color: Red
Shrink Ratio: 3:1
L: 26.9mm (1.10")
D2:
4.3mm (0.17")
W: 6.6mm (0.26")
Material: Tin Plated Copper
Insulation: Polyethylene
Max Electrical Rating: 600 Volts
Temperature Rating: -67°F to 221°F (-55°C to 105°C)
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
