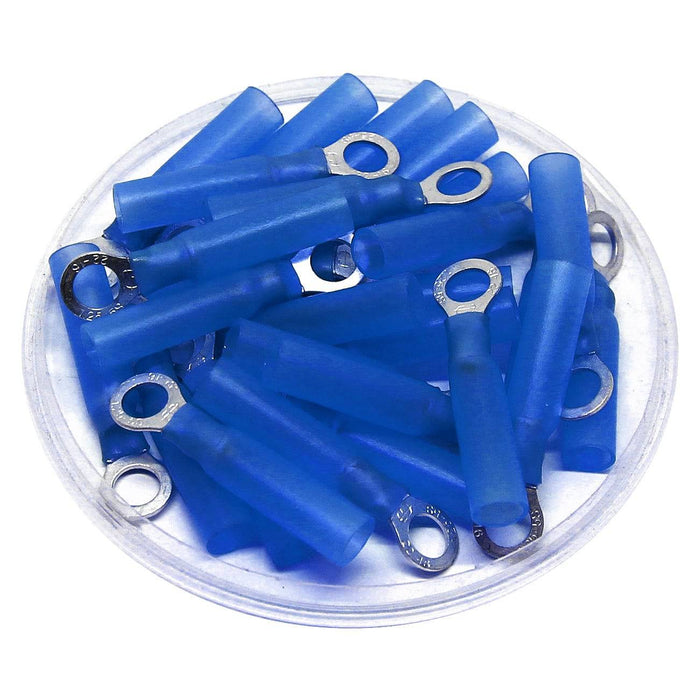

16 to 14 AWG Heat Shrink Ring Terminals, #10 Stud, Polyethylene, 25 Pieces - RHTS2-5

Precio original $7.80 - Precio original $7.80
Precio original
$7.80
$7.80 - $7.80
Precio actual $7.80
SKU RHTS2-5
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 25 Pieces

HEAT SHRINKABLE RING TERMINALS

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 16 to 14 AWG
Stud Size: #10 Stud
Color: Blue
L: 30.5mm (1.20")
D2:
5.3mm (0.21")
W: 8.5mm (0.34")
Material: Tin Plated Copper
Insulation: Polyethylene
Max Electrical Rating: 600 Volts
Temperature Rating: -67°F to 221°F (-55°C to 105°C)
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
