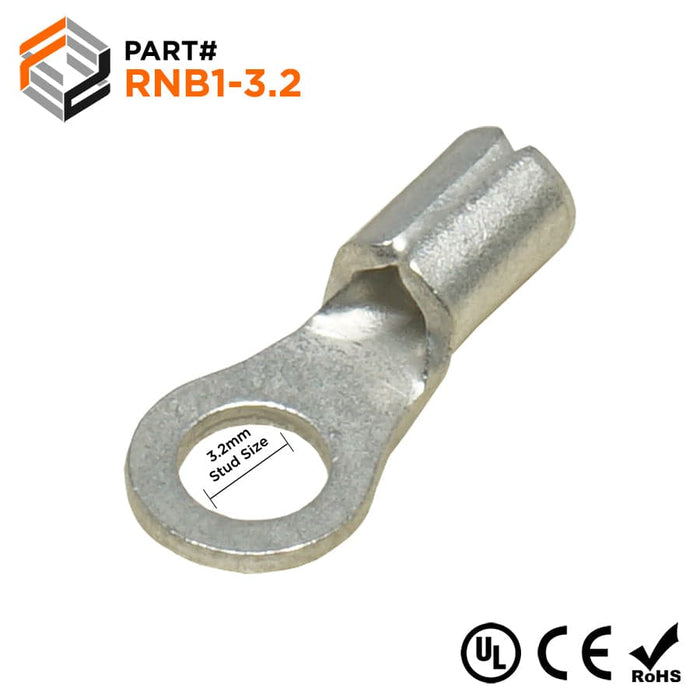

RNB1-3.2 Non Insulated Ring Terminal - 22-16AWG

Agotado
Precio original $5.59 - Precio original $5.59
Precio original
$5.59
$5.59 - $5.59
Precio actual $5.59
SKU RNB1-32
Disponibilidad:
Agotado
Pack Quantity: 100 Pieces
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped

Wire Range: 22-16 AWG
T: 0.03" (0.75mm)
L: 0.49" (12.5mm)
F: 0.19" (5.0mm)
E: 0.19" (4.8mm)
W: 0.22" (5.5mm)
D: 0.13" (3.4mm)
D1: 0.07" (1.7mm)
D2: 0.13" (3.2mm)
Terminal Material: Tin-Plated Copper
Stud Size: #4 Stud
Temperature Rating: 150oC - 600 Volts
Max Electrical Rating: 18 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
3M: M18-4R/SX
Cembre: S1.5-M3
Eclipse: 902-407-10
Panduit: P18-4R-C
Photenix Contact: 3240070
Tyco AMP: 34104
