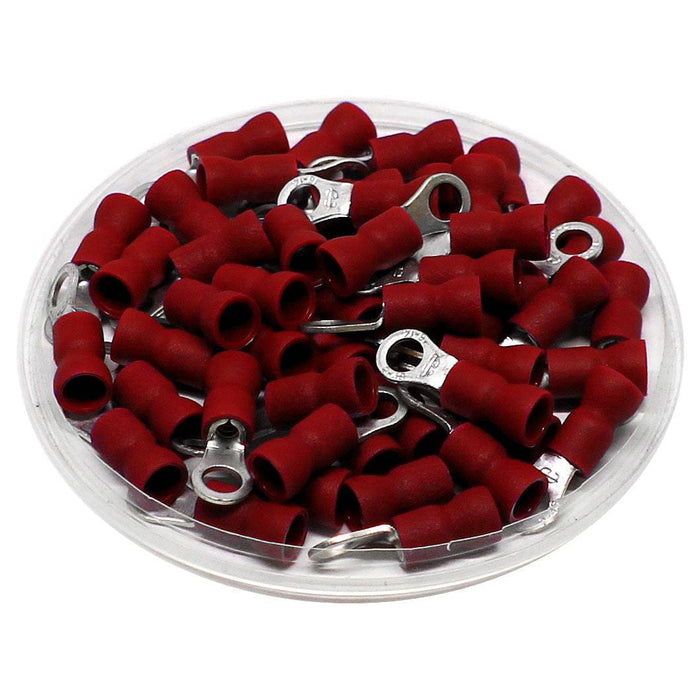

22 to 16 AWG Vinyl Insulated Easy Entry Ring Terminals, #10 Stud, Butted Seam, 100 Pieces - RVE1-5
Precio original
$6.07
-
Precio original
$6.07
Precio original
$6.07
$6.07
-
$6.07
Precio actual
$6.07
SKU RVE1-5
Disponibilidad:
en stock, listo para ser enviado
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #10 Stud |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 22mm (0.87") |
| F: | 7.0mm (0.28") |
| E: | 11.2mm (0.44") |
| W: | 8.0mm (0.32") |
| D | 4.3mm (0.17") |
| D1: | 1.7mm (0.07") |
| D2: | 5.3mm (.21) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Seam: | Butted |
| Max Electrical Rating: | 600 Volts (105°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
