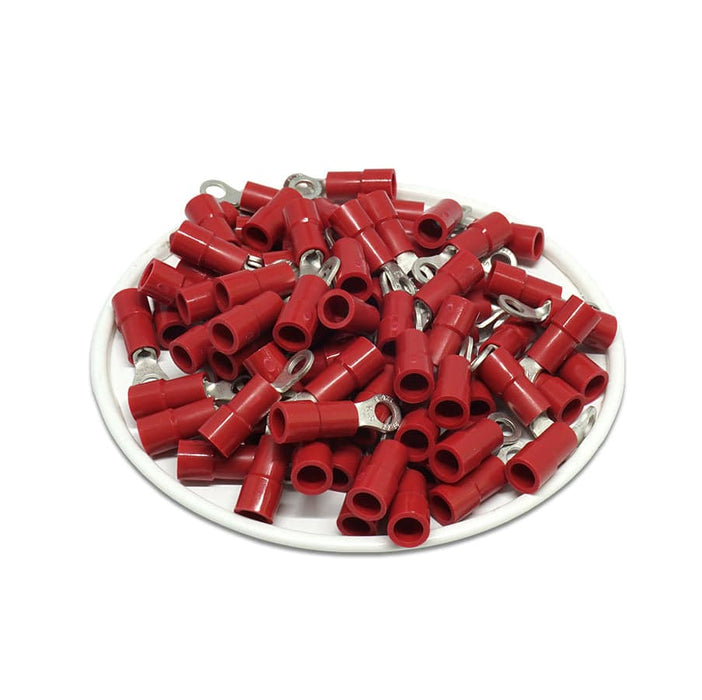

22 to 16 AWG Vinyl Insulated Molded Easy Entry Ring Terminals, #4 Stud, Butted Seam, 100 Pieces - RVY1-32
Precio original
$6.46
-
Precio original
$6.46
Precio original
$6.46
$6.46
-
$6.46
Precio actual
$6.46
SKU RVY1-3.2
Disponibilidad:
en stock, listo para ser enviado
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
Wire Size: | 22-16 AWG |
Stud Size: | #4 Stud |
Color: | Red |
T: | 0.75mm (0.03") |
L: | 18.5mm (0.728") |
F: | 5.0mm (0.197") |
E: | 11mm (0.433") |
W: | 5.5mm (0.217") |
D | 4.0mm (0.157") |
D1: | 1.7mm (0.067") |
D2: | 3.2mm (0.126") |
Terminal Material: | Tin-Plated Copper |
Insulation Material: | Vinyl |
Max Electrical Rating: | 600 Volts (105oC) |
Seam: | Butted |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
ABIKO: KA1532G
Documents
Click to view product spec sheet:
