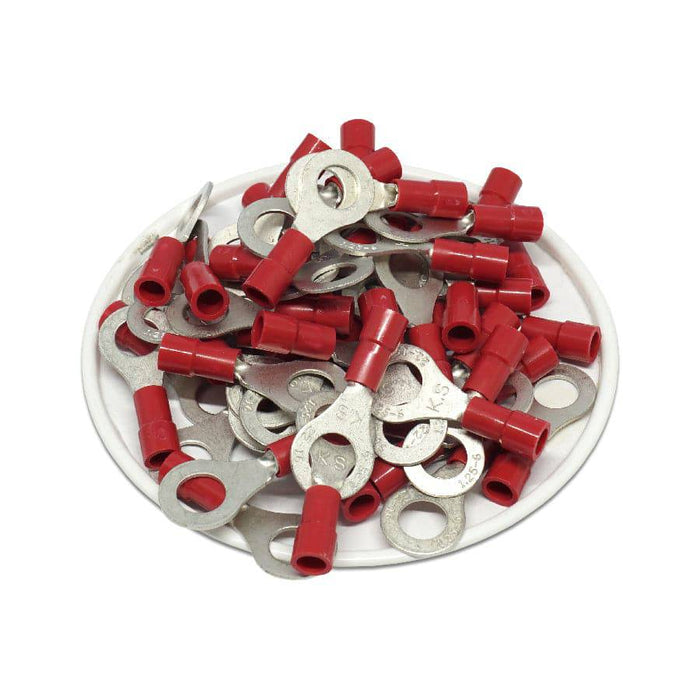

22 to 16 AWG Vinyl Insulated Molded Easy Entry Ring Terminals, 1/4" Stud, Butted Seam, 100 Pieces - RVY1-6

Precio original $12.80 - Precio original $12.80
Precio original
$12.80
$12.80 - $12.80
Precio actual $12.80
SKU RVY1-6
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

VINYL INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.



Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: 1/4"
Color: Red
T: 0.75mm (0.03")
L: 27.8mm (1.09")
F: 11mm (0.433")
E: 11mm (0.433")
W: 11.6mm (0.457")
D 4.0mm (0.157")
D1: 1.7mm (0.067")
D2: 6.4mm (0.252")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105oC)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:


Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:



Videos

Click here to check out our YouTube channel:

COMPARE TO THESE PARTS:
