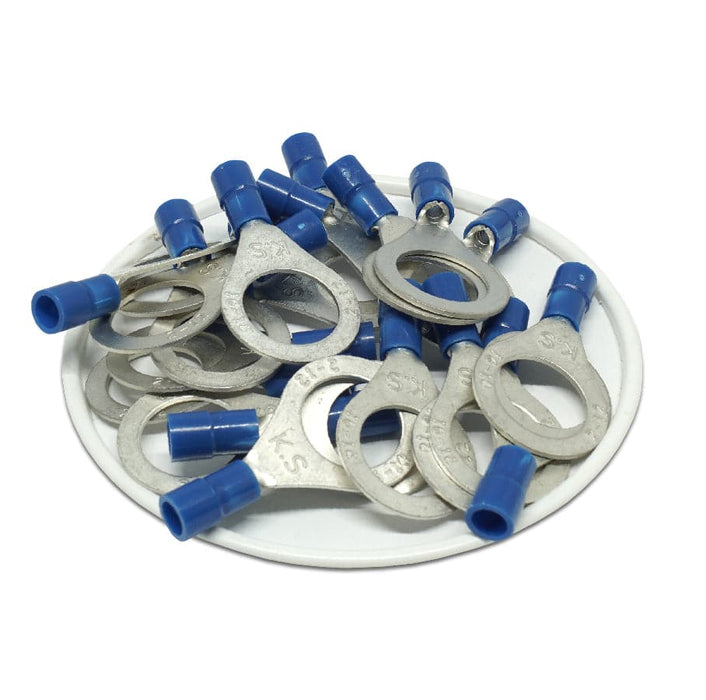

16 to 14 AWG Vinyl Insulated Molded Easy Entry Ring Terminals, 1/2" Stud, Butted Seam, 50 Pieces - RVY2-12
Precio original
$12.44
-
Precio original
$12.44
Precio original
$12.44
$12.44
-
$12.44
Precio actual
$12.44
SKU RVY2-12
Disponibilidad:
en stock, listo para ser enviado
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
Wire Size: | 16-14 AWG |
Stud Size: | 1/2" Stud |
Color: | Blue |
T: | 0.8mm (0.03") |
L: | 36.4mm (1.43") |
F: | 16mm (0.63") |
E: | 11mm (0.433") |
W: | 19.2mm (0.756") |
D: | 4.5mm (0.177") |
D1: | 2.3mm (0.091") |
D2: | 13mm (0.512") |
Terminal Material: | Tin-Plated Copper |
Insulation Material: | Vinyl |
Max Electrical Rating: | 600 Volts (105oC) |
Seam: | Butted |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
