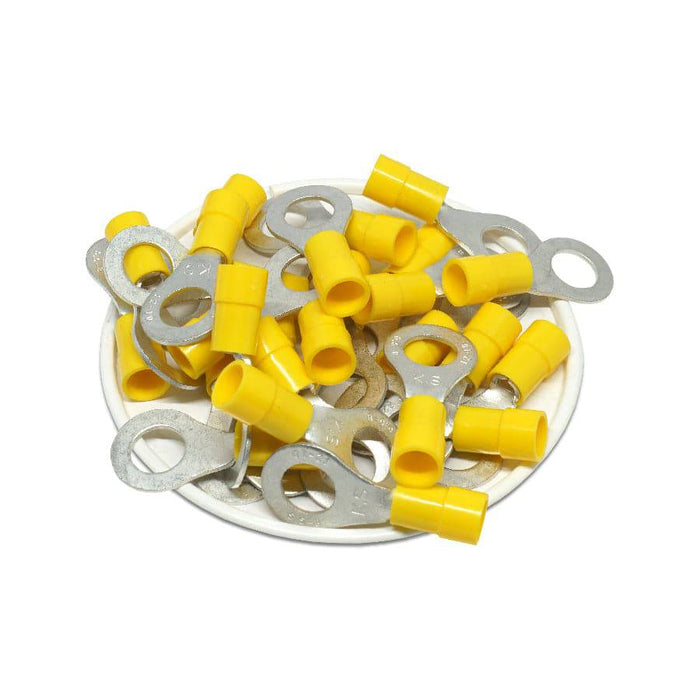

12 to 10 AWG Vinyl Insulated Molded Easy Entry Ring Terminals, 5/16" Stud, Butted Seam, 50 Pieces - RVY5-8

Precio original $15.30 - Precio original $15.30
Precio original
$15.30
$15.30 - $15.30
Precio actual $15.30
SKU RVY5-8
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 50 Pieces

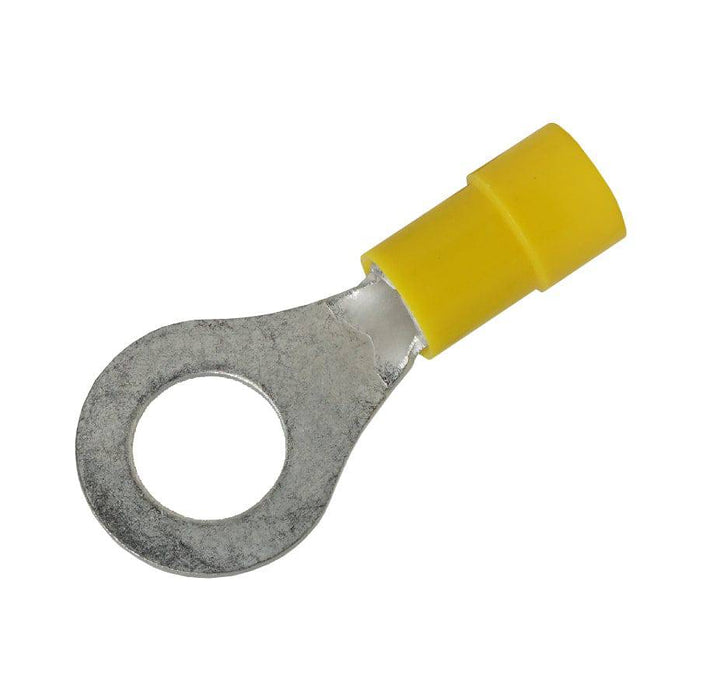

VINYL INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.



Dimensions & Features:

Wire Size: 12-10 AWG
Stud Size: 5/16" Stud
Color: Yellow
T: 1.0mm (0.04")
L: 34mm (1.34")
F: 13.3mm (0.524")
E: 13mm (0.512")
W: 15mm (0.591")
D: 6.4mm (0.252")
D1: 3.4mm (0.134")
D2: 8.4mm (0.331")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105oC)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:


Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:
