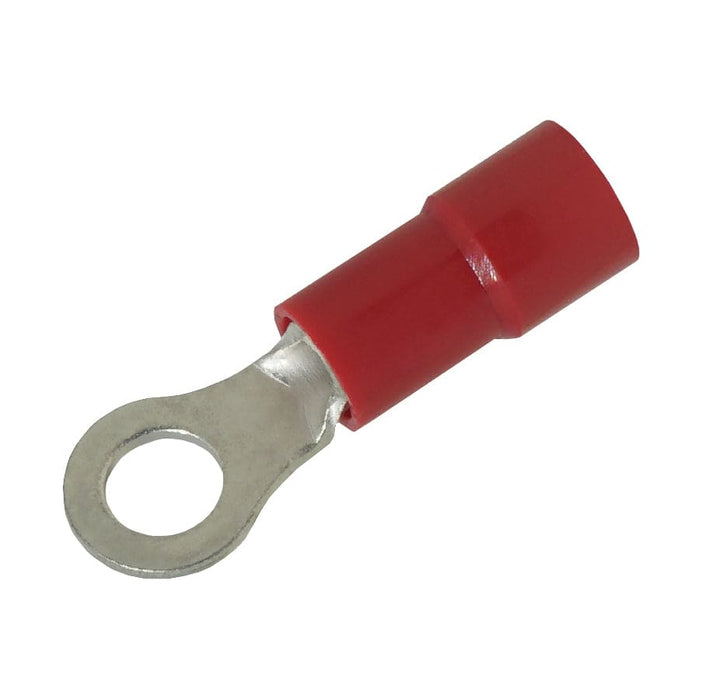

RVYM1-37 - 22 to 16 AWG Molded PVC Vinyl Insulated Ring Terminals, Easy Entry, #6 Stud, 100 Pieces
Precio original
$7.28
-
Precio original
$7.28
Precio original
$7.28
$7.28
-
$7.28
Precio actual
$7.28
SKU RVYM1-37
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
DIMENSIONS & FEATURES:
| Wire Size: | 22 to 16 AWG |
| Stud Size: | #6 |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 20.4mm (0.803") |
| F: | 6.3mm (0.248") |
| E: | 11mm (0.433") |
| W: | 6.6mm (0.62") |
| D | 4.0mm (0.157") |
| D1: | 1.7mm (0.067") |
| D2: | 3.7mm (0.146") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
