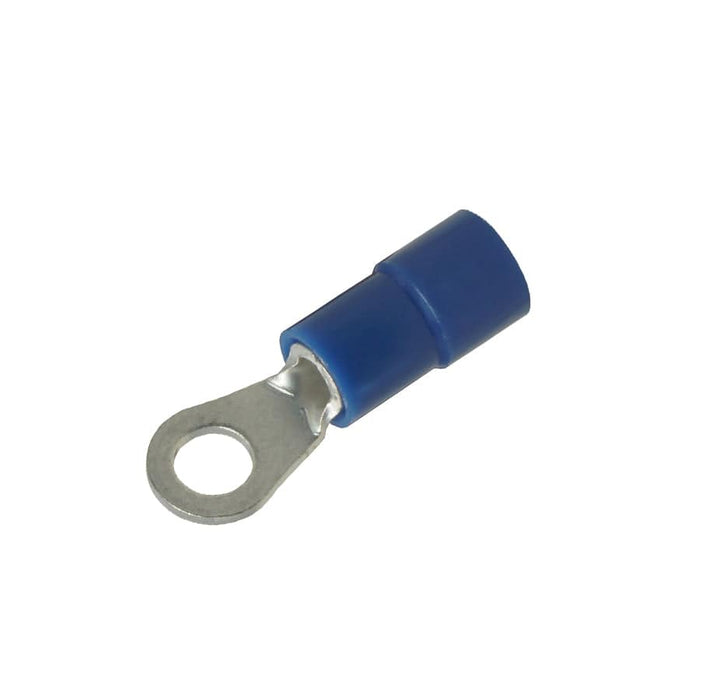

16 to 14 AWG Vinyl Insulated Molded Easy Entry Ring Terminals, #6 Stud, Butted Seam, 100 Pieces - RVYM2-37

Precio original $8.72 - Precio original $8.72
Precio original
$8.72
$8.72 - $8.72
Precio actual $8.72
SKU RVYM2-37
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

VINYL INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.



Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #6 Stud
Color: Blue
T: 0.8mm (0.03")
L: 20.4mm (0.803")
F: 6.3mm (0.248")
E: 11mm (0.433")
W: 6.6mm (0.260")
D 4.5mm (0.177")
D1: 2.3mm (0.091")
D2: 3.7mm (0.146")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105oC)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:


Cross References

Cross Reference Parts:
None
