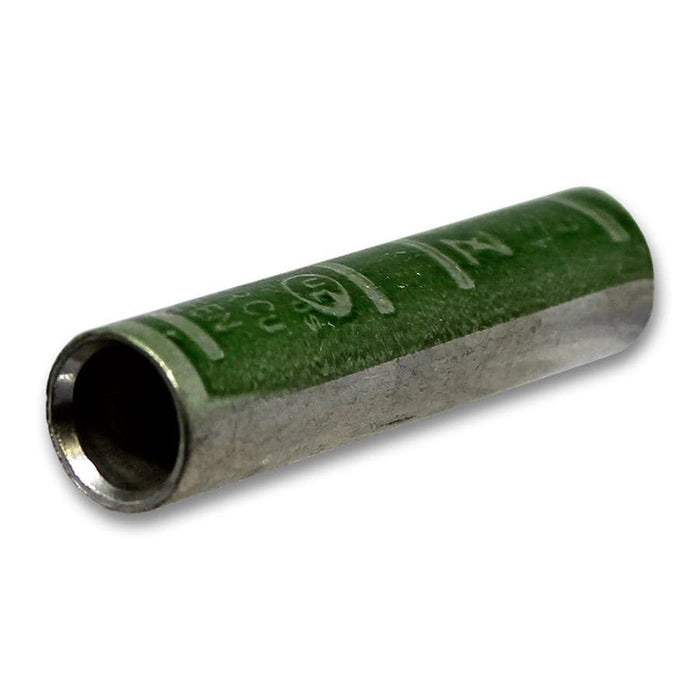

SC1 - 1 AWG Short Barrel Splice - Green
Precio original
$1.40
-
Precio original
$1.40
Precio original
$1.40
$1.40
-
$1.40
Precio actual
$1.40
SKU SC1
Disponibilidad:
en stock, listo para ser enviado
Short barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 1 AWG |
| Color: | Green |
| L: | 47.4mm (1.87") |
| D: |
11.6mm (0.46") |
| D1: | 9.1mm (0.36") |
| Barrel: | Seamless |
| Material: | Tin Plated Copper |
| Voltage Rating: | 600V |
| Max Electrical Current: | 130 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
