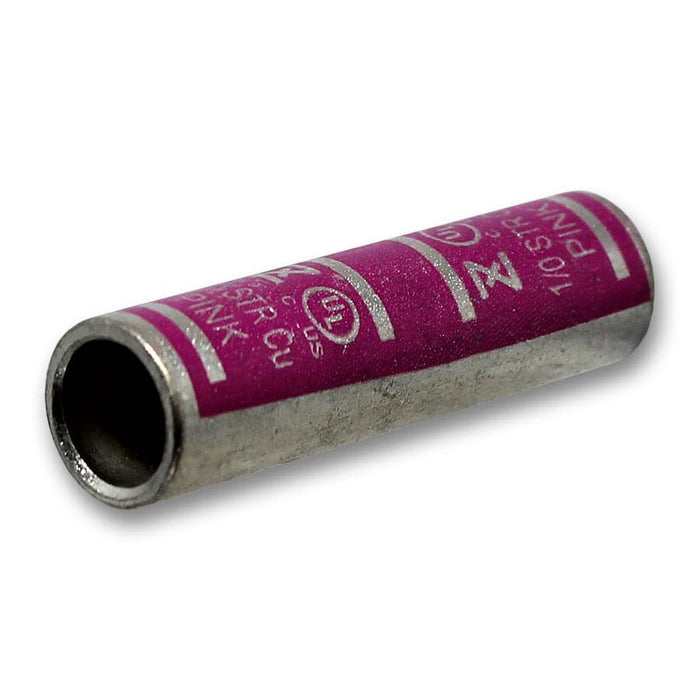

SC10 - 1/0 AWG Short Barrel Splice - Pink
Agotado
Precio original
$1.69
-
Precio original
$1.69
Precio original
$1.69
$1.69
-
$1.69
Precio actual
$1.69
SKU SC10
Disponibilidad:
Agotado
Short barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 1/0 AWG |
| Color: | Pink |
| L: | 47.4mm (1.87") |
| D: |
12.9mm (0.51") |
| D1: | 10.2mm (0.40") |
| Barrel: | Seamless |
| Material: | Tin Plated Copper |
| Voltage Rating: | 600V |
| Max Electrical Current: | 150 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
