SC250 - 250MCM Short Barrel Splice - Yellow - Ferrules Direct

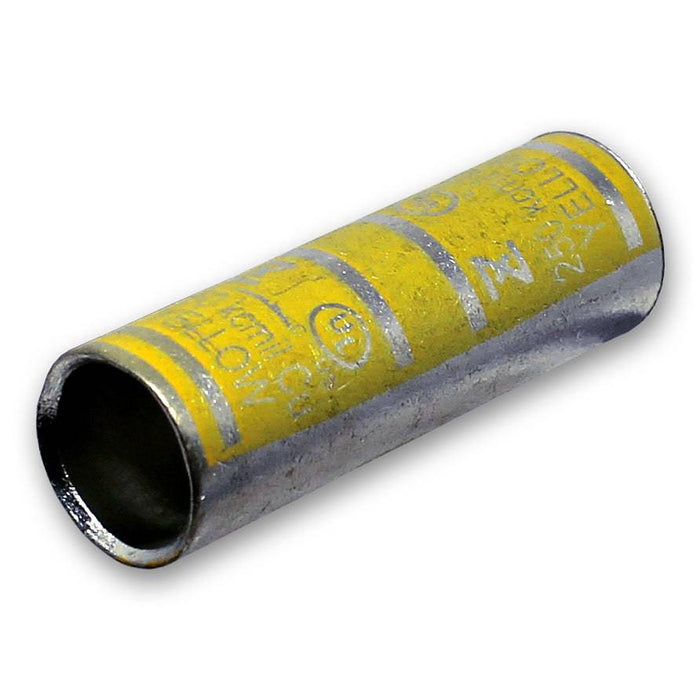

SC250 - 250MCM Short Barrel Splice - Yellow

$3.33 - $3.33
$3.33
$3.33 - $3.33
$3.33
SKU SC250
Disponibilidad:
en stock, listo para ser enviado
true
Short barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.

Dimensions & Features:

Wire Size: 250MCM
Color: Yellow
L: 57.1mm (2.25")
D:
 19.1mm (0.75")
D1: 16mm (0.63")
Barrel: Seamless
Material: Tin Plated Copper
Voltage Rating: 600V
Max Electrical Current: 255 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
