SC300 - 300MCM Short Barrel Splice - White - Ferrules Direct

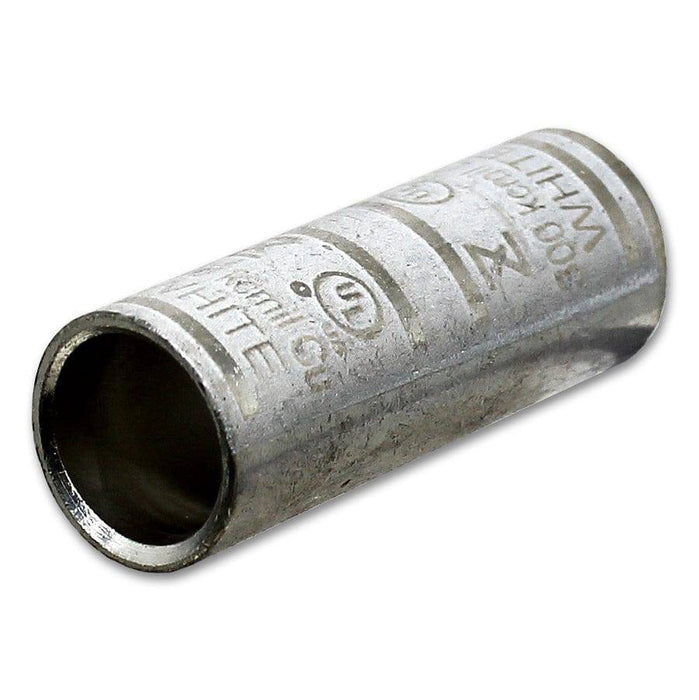

SC300 - 300MCM Short Barrel Splice - White

$4.46 - $4.46
$4.46
$4.46 - $4.46
$4.46
SKU SC300
Disponibilidad:
en stock, listo para ser enviado
true
Short barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.

Dimensions & Features:

Wire Size: 300MCM
Color: White
L: 57.1mm (2.25")
D:
 20.9mm (0.82")
D1: 17.1mm (0.67")
Barrel: Seamless
Material: Tin Plated Copper
Voltage Rating: 600V
Max Electrical Current: 285 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
