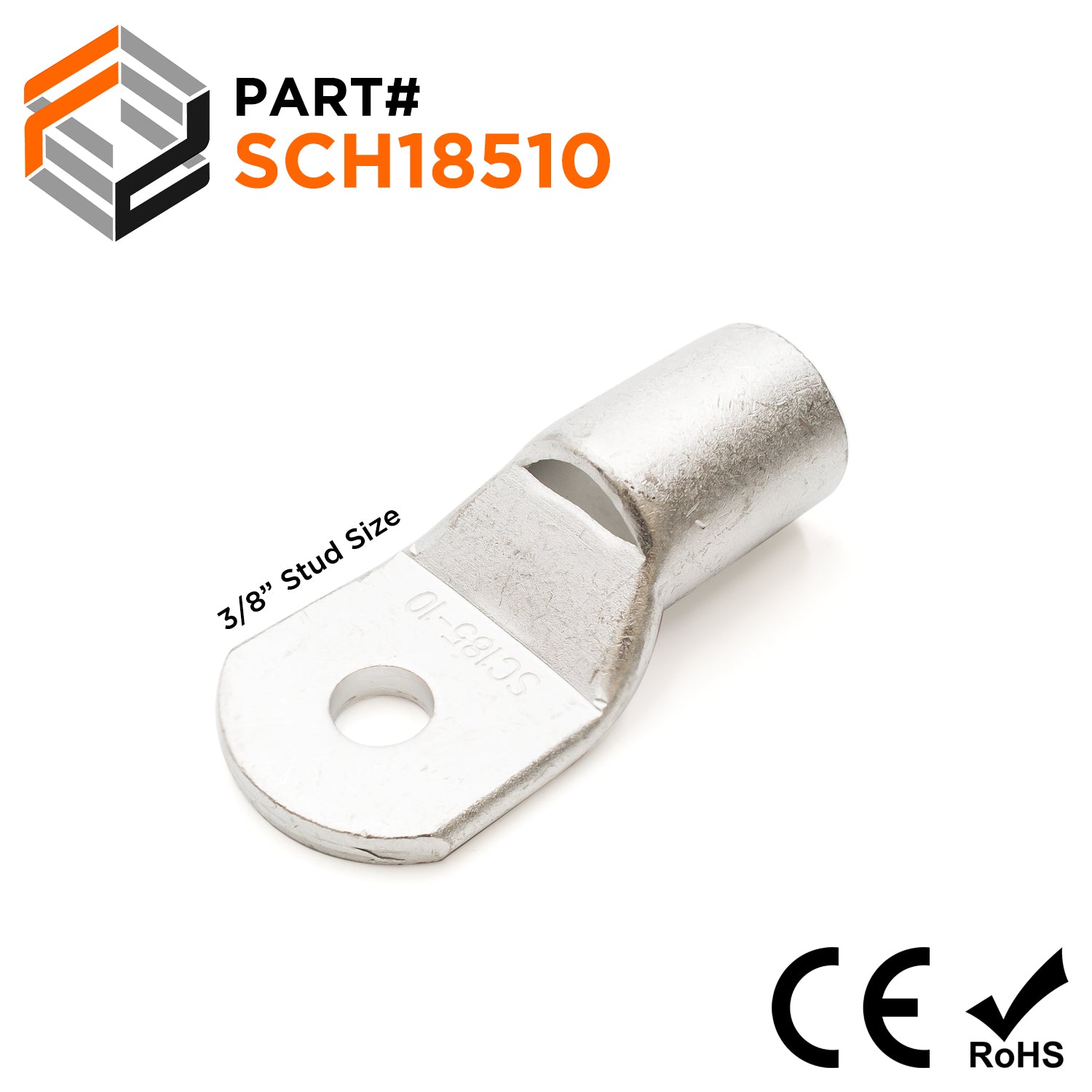

SCH18510 - Non Insulated Tubular Ring Lugs, 365MCM, 3/8" Stud, 5 Pieces
Precio original
$28.50
-
Precio original
$28.50
Precio original
$28.50
$28.50
-
$28.50
Precio actual
$28.50
SKU SCH18510
Quantity: 5 Pieces
Disponibilidad:
en stock, listo para ser enviado

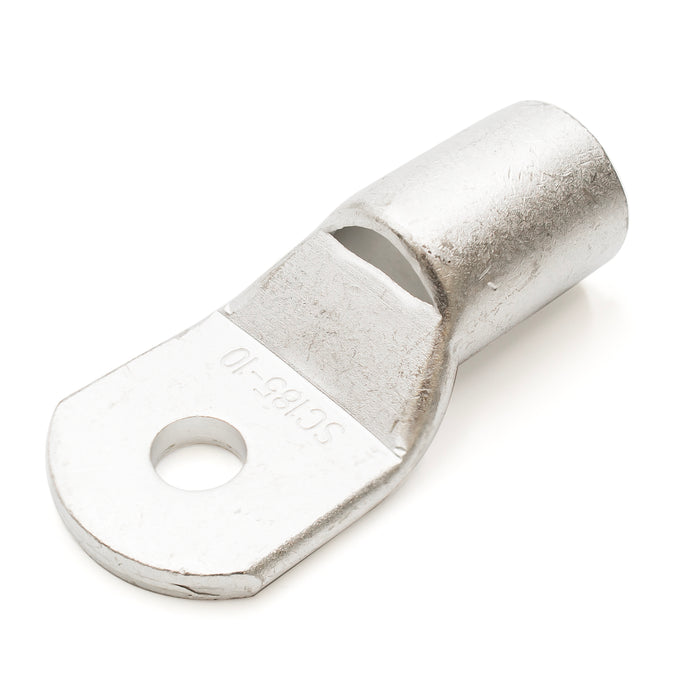

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 365MCM |
| Stud Size: | 3/8" Stud |
| F: | 31.0mm (1.22") |
| W: | 34.5mm (1.36") |
| L: | 74.4mm (2.92") |
| D: | 23.5mm (0.93") |
| D1: | 19.5mm (0.77") |
| D2: | 10.4mm (0.41") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 75°C |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 310 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
