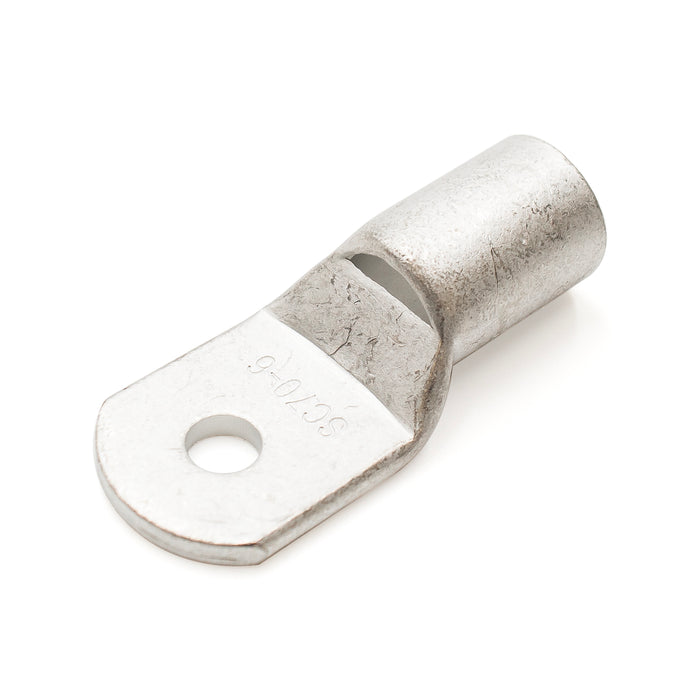

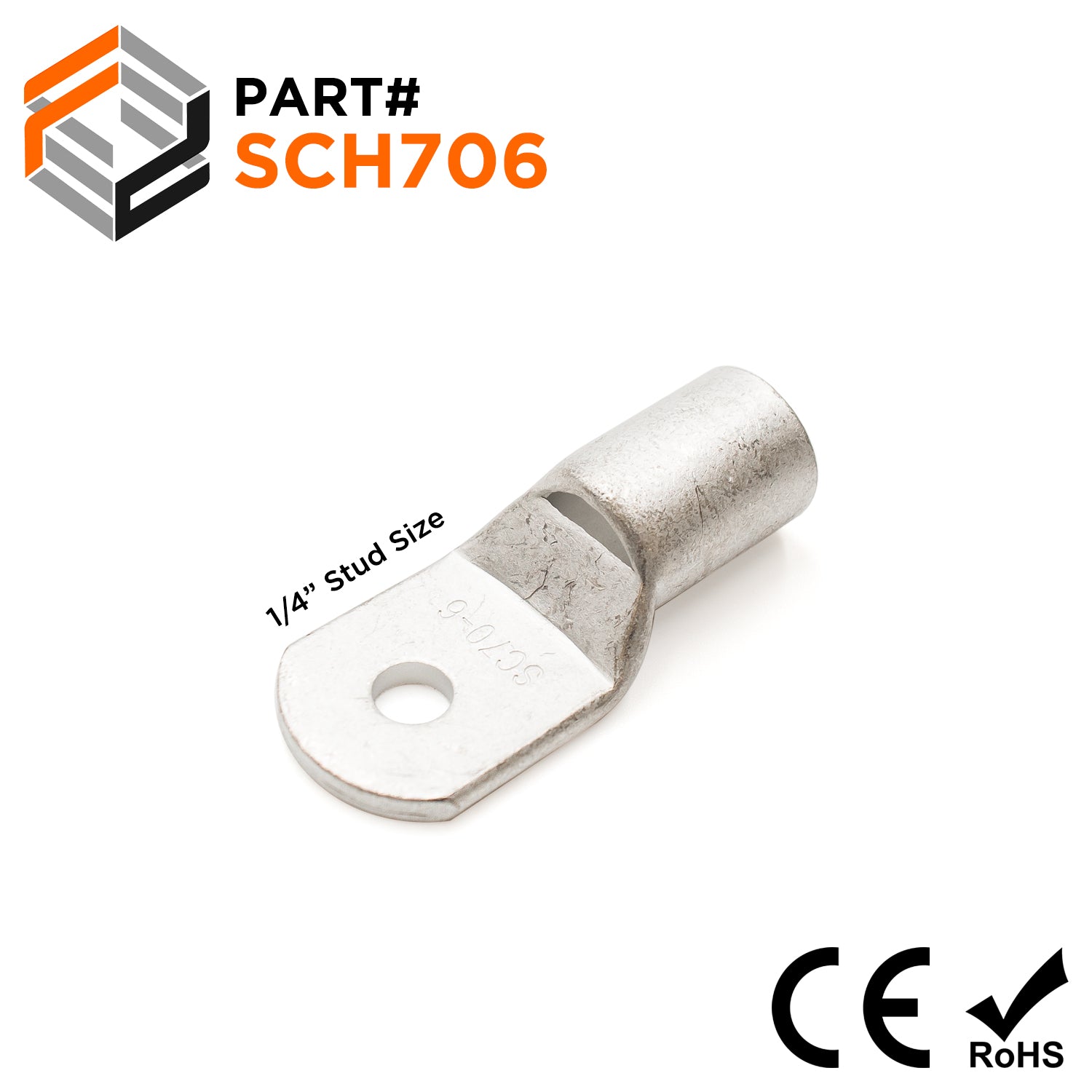

SCH706 - Non Insulated Tubular Ring Lugs, 2/0 AWG, 1/4" Stud, 10 Pieces
Precio original
$13.37
-
Precio original
$13.37
Precio original
$13.37
$13.37
-
$13.37
Precio actual
$13.37
SKU SCH706
Quantity: 10 Pieces
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Stud Size: | 1/4" Stud |
| F: | 20.0mm (0.78") |
| W: | 21.0mm (0.83") |
| L: | 48.5mm (1.91") |
| D: | 14.5mm (0.57") |
| D1: | 11.5mm (0.45") |
| D2: | 6.4mm (0.25") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 75°C |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 175 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
