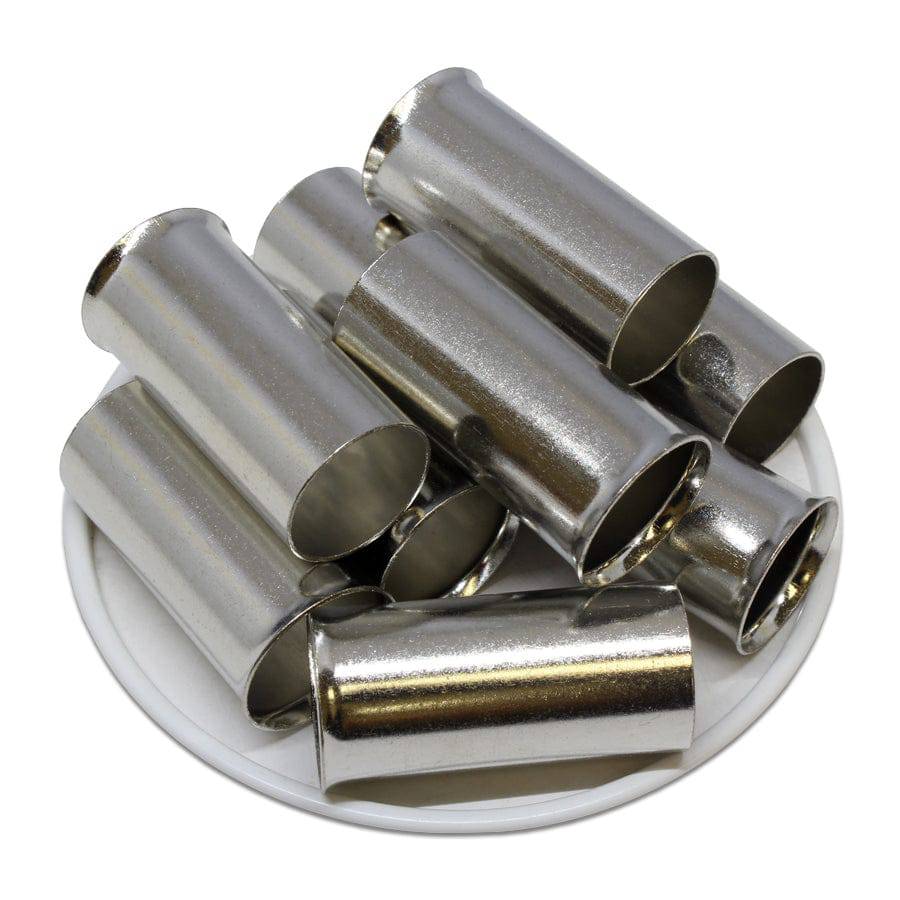

SF1120034 - True 4/0 AWG (34mm Pin) Non Insulated Ferrules
Precio original
$33.22
-
Precio original
$33.22
Precio original
$33.22
$33.22
-
$33.22
Precio actual
$33.22
SKU SF1120034
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | True 4/0 AWG |
L1: | 34mm (1.34") |
D: | 16mm (0.63") |
D1: | 15mm (0.59") |
D2: | 17.5mm (0.69") |
Material: | Tin Plated Copper |
UL Approved: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Max Electrical Rating: | Up to 2000V |
Max Electrical Current: | 360A |
Product Drawing:
Cross References
Cross Reference Parts:None
