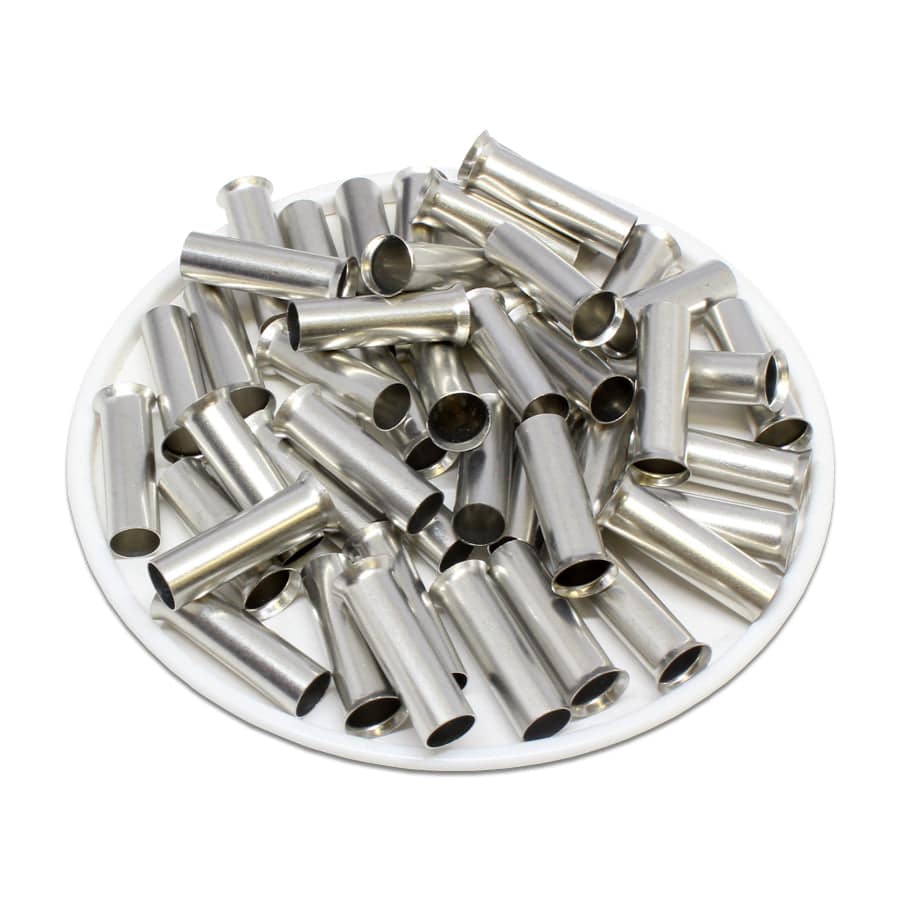

SF133018 - True 6 AWG (18mm Pin) Non Insulated Ferrules

Precio original $20.18 - Precio original $20.18
Precio original
$20.18 - $20.18
Precio actual $20.18
SKU SF133018
en stock, listo para ser enviado
Piece Quantity: 250 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: True 6 AWG (13.30mm2)
Material: Tin-Plated Copper
L: 18mm (0.71")
D: 5.4mm (0.21")
D1: 5.0mm (0.20")
D2: 6.7mm (0.26")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 95A
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:

Cross References

Cross Reference Parts:


Click to view product spec sheet:


Click here to learn how to crimp a wire ferrule!
