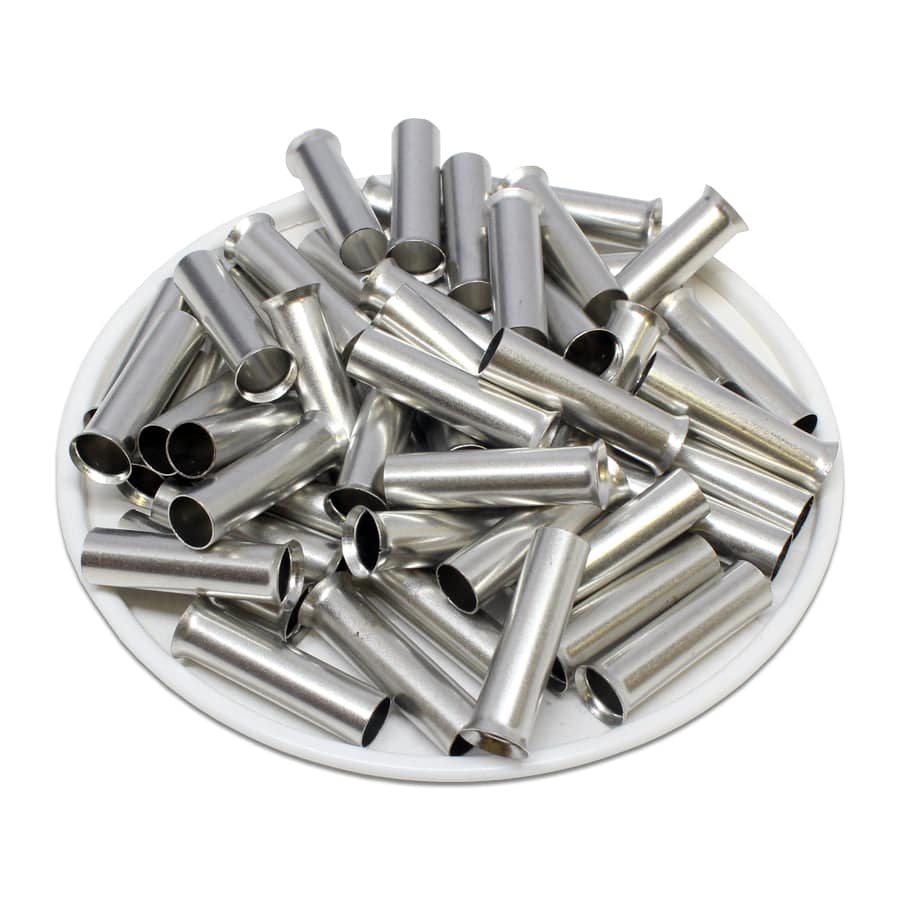

SF133020 - True 6 AWG (20mm Pin) Non Insulated Ferrules
Precio original
$24.84
-
Precio original
$24.84
Precio original
$24.84
$24.84
-
$24.84
Precio actual
$24.84
SKU SF133020
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Range: | True 6 AWG (13.30mm2) |
Material: | Tin-Plated Copper |
L: | 20mm (0.79") |
D: | 5.4mm (0.21") |
D1: | 5.0mm (0.20") |
D2: | 6.7mm (0.26") |
Max Electrical Rating: | Up to 2000V |
Max Electrical Current: | 95A |
UL Approved: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
