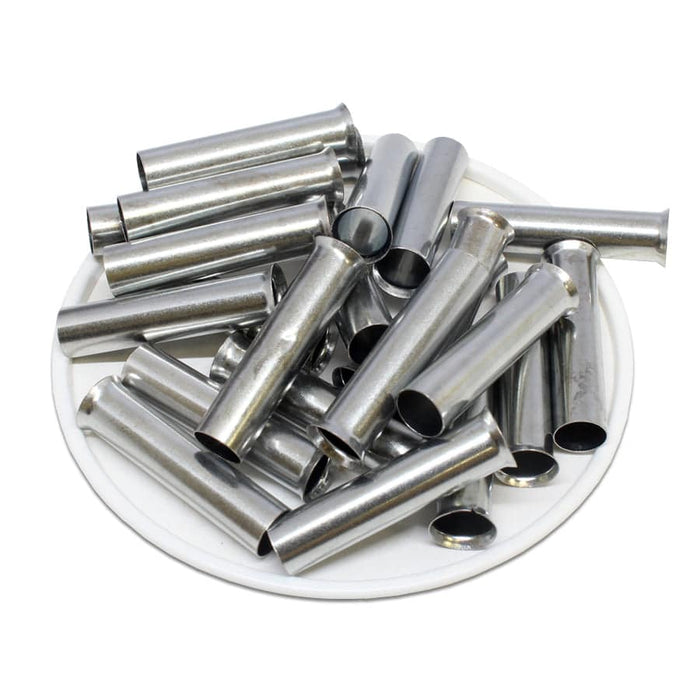

SF212030 - True 4 AWG (30mm Pin) Non Insulated Ferrules

Precio original $18.63 - Precio original $18.63
Precio original
$18.63
$18.63 - $18.63
Precio actual $18.63
SKU SF212030
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: True 4 AWG
L1: 30mm (1.18")
D: 7mm (0.28")
D1: 6.6mm (0.26")
D2: 8.8mm (0.35")
Material: Tin Plated Copper
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: Up to 2000V
Max Electrical Current: 125A

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
