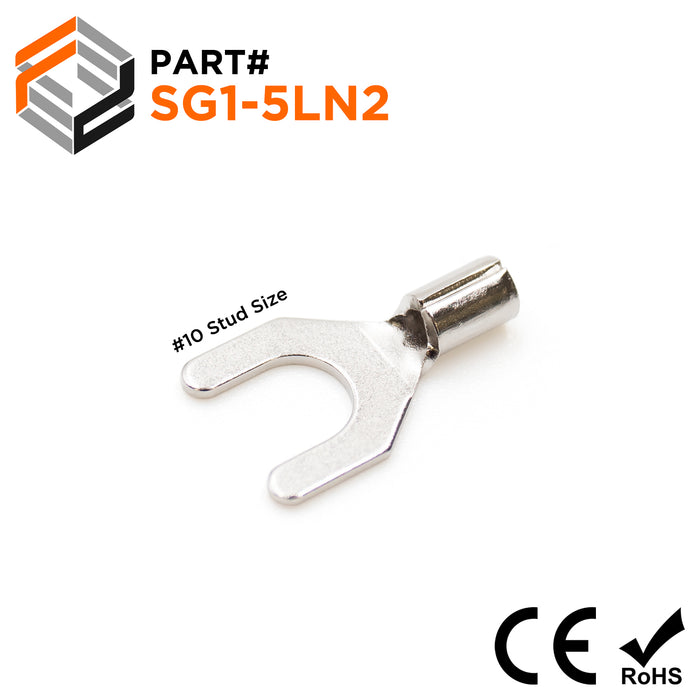

SG1-5LN2 - Stainless Steel Spade Terminals - 22-16 AWG - #10 Stud
Precio original
$6.64
-
Precio original
$6.64
Precio original
$6.64
$6.64
-
$6.64
Precio actual
$6.64
SKU SG1-5LN2
Disponibilidad:
en stock, listo para ser enviado

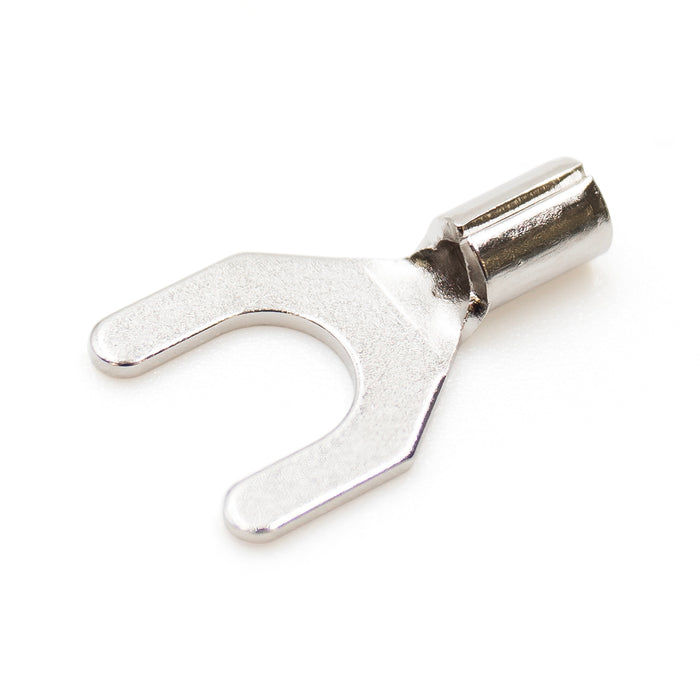

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 22-16 AWG |
| Stud Size: | #10 Stud |
| T: | 0.8mm (0.031") |
| L: | 16.0mm (0.630") |
| F: | 7.0mm (0.276") |
| E: | 5.0mm (0.197") |
| W: | 9.5mm (0.374") |
| D: | 3.4mm (0.134") |
| D1: | 1.6mm (0.0.63") |
| D2: | 5.3mm (0.208") |
| Terminal Material: | Stainless Steel |
| Surface Treatment: | Nickel Plated |
| Temperature Rating: | 482°C - 600 Volts |
| Max Electrical Rating: | 18 AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
