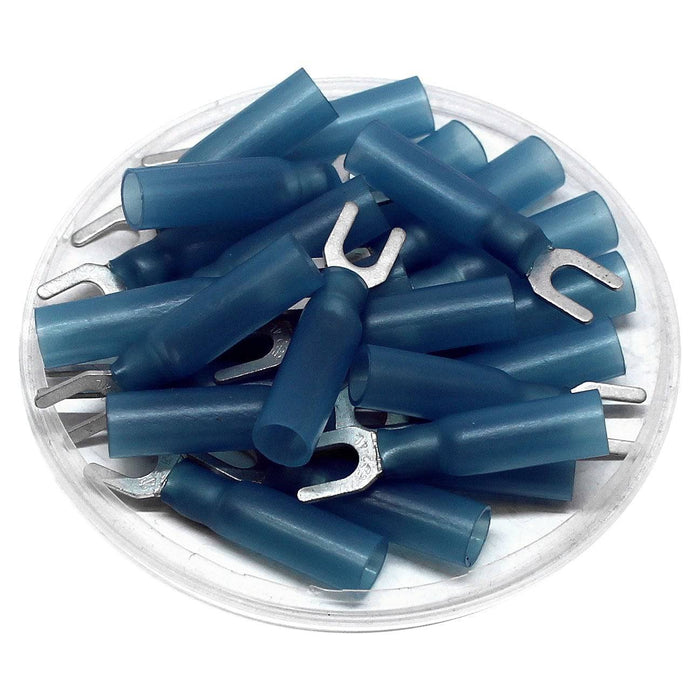

SHTL2-3.7 - Polyethylene Insulated Heat Shrinkable Spade Terminals - 16-14 AWG

Precio original $7.66 - Precio original $7.66
Precio original
$7.66
$7.66 - $7.66
Precio actual $7.66
SKU SHTL2-37
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 25 Pieces
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #6
Color: Blue
Insulation Material: Polyethylene
Terminal Material: Tin-Plated Copper
Temperature Rating: -55oC to 100oC
Shrink Temperature: 180oC
Voltage Rating: 600 Volts
L: 28.5mm (1.12")
D2: 3.7mm (0.15")
W: 6.0mm (0.24")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
