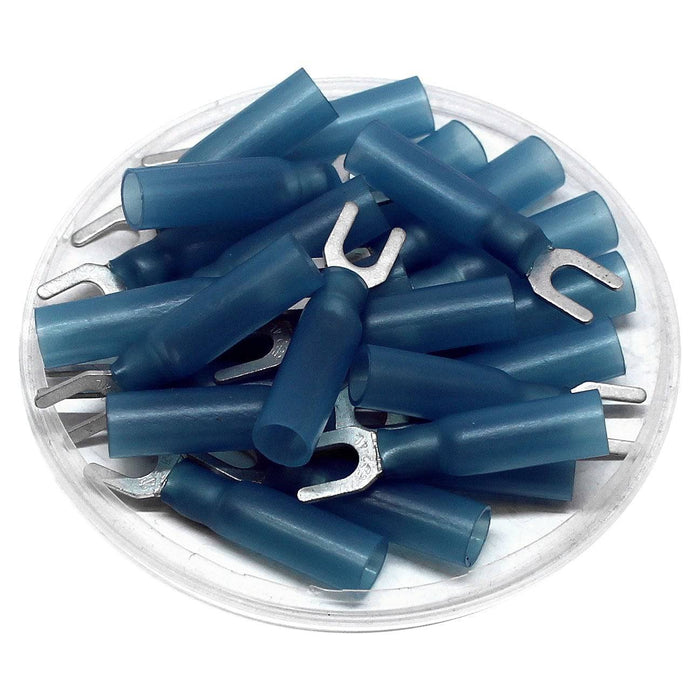

16 to 14 AWG Heat Shrink Spade Terminals, #8 Stud, Polyethylene, 25 Pieces - SHTL2-4
Precio original
$7.66
-
Precio original
$7.66
Precio original
$7.66
$7.66
-
$7.66
Precio actual
$7.66
SKU SHTL2-4
Disponibilidad:
en stock, listo para ser enviado
HEAT SHRINKABLE SPADE TERMINALS
Heat shrink insulated spade terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
| Wire Size: |
16 to 14 AWG |
| Stud Size: | #8 |
| Color: | Blue |
| Insulation Material: | Polyethylene |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | -67°F to 221°F (-55°C to 100°C) |
| Voltage Rating: | 600 Volts |
| L: | 28.5mm (1.12") |
| D2: | 4.3mm (0.17") |
| W: | 7.9mm (0.31") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
