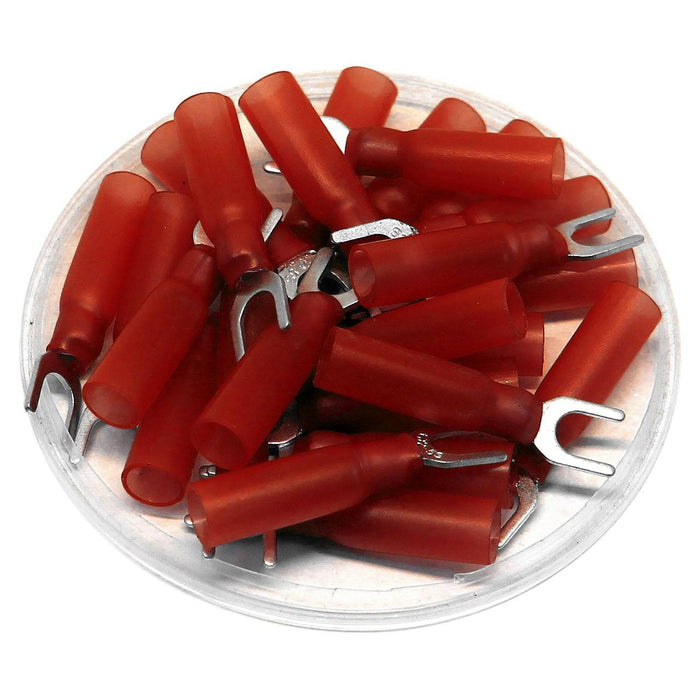

22 to 16 AWG Heat Shrink Spade Terminals, #10 Stud, Polyethylene, 25 Pieces - SHTS1-5

Precio original $6.30 - Precio original $6.30
Precio original
$6.30
$6.30 - $6.30
Precio actual $6.30
SKU SHTS1-5
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 25 Pieces

HEAT SHRINKABLE SPADE TERMINALS

Heat shrink insulated spade terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 22 to 16 AWG
Stud Size: #10
Color: Red
Insulation Material: Polyethylene
Terminal Material: Tin-Plated Copper
Temperature Rating: -67°F to 221°F (-55°C to 100°C)
Voltage Rating: 600 Volts
L: 28.5mm (1.12")
D2: 5.3mm (0.21")
W: 8.1mm (0.32")
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None
