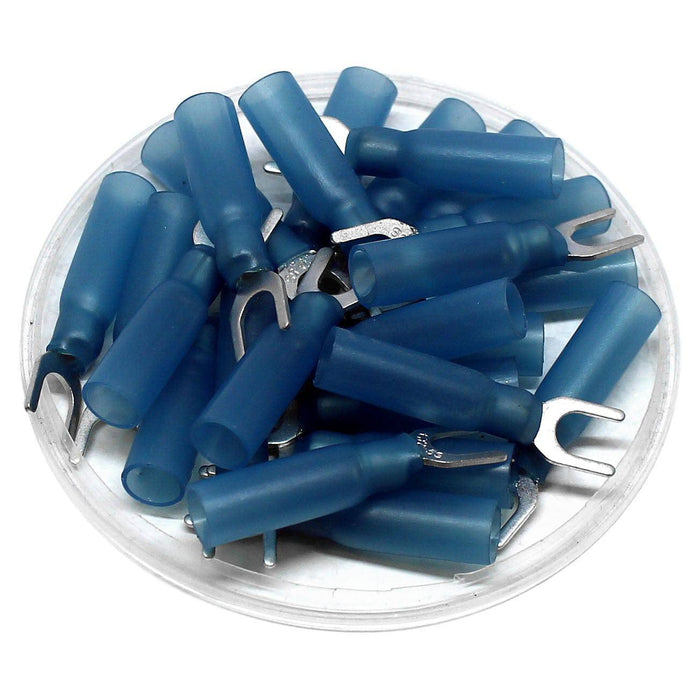

SHTS2-6 - Polyethylene Insulated Heat Shrinkable Spade Terminals - 16-14 AWG
Precio original
$3.60
-
Precio original
$7.50
Precio original
$7.50
$3.60
-
$7.50
Precio actual
$7.50
SKU SHTS2-6
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
en stock, listo para ser enviado
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | 1/4" |
| Color: | Blue |
| Insulation Material: | Polyethylene |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | -55oC to 100oC |
| Shrink Temperature: | 180oC |
| Voltage Rating: | 600 Volts |
| L: | 28.5mm (1.12") |
| D2: | 6.4mm (0.25") |
| W: | 9.3mm (0.37") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
