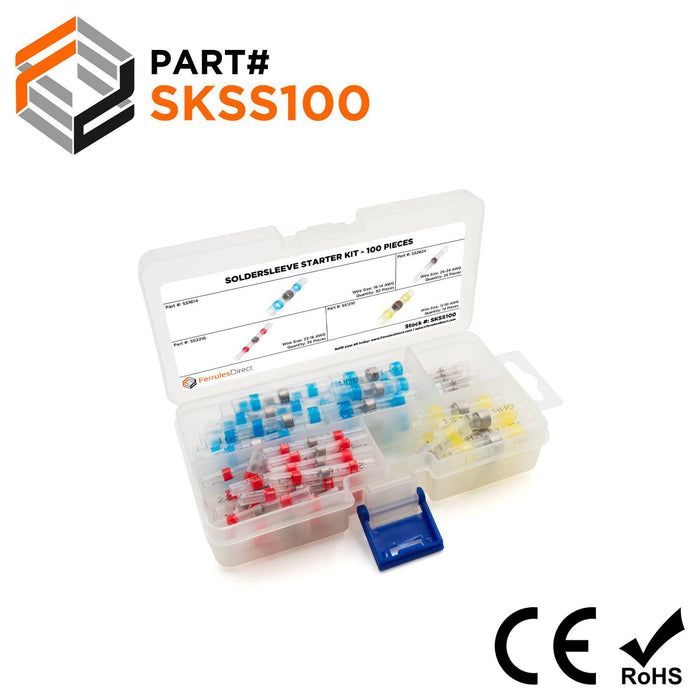

26-10 AWG Heat Shrink Solder Seal Connectors Mini Kit, 100 Pieces, IP67 Waterproof - SKSS100
Precio original
$10.75
-
Precio original
$10.75
Precio original
$10.75
$10.75
-
$10.75
Precio actual
$10.75
SKU SKSS100
Disponibilidad:
en stock, listo para ser enviado
HEAT SHRINK SOLDER SEAL CONNECTORS
Ferrules Direct's SKSS100 solder seal mini kit is a pocket sized compact kit with a small variety of solder seals ranging from 26 through 10 AWG, to meet your soldering demands. Need a larger assortment? Be sure to check out our additional kits!
SPECIFICATIONS:
- Connector Working Temperature: -67°F - 257°F (-55°C - 125°C)
- Minimum Shrinking Temperature: 175°F (79.44°C)
- Maximum Shrinking Temperature: >320°F (>160°C)
- Solder Seal Melting Temp (Minimum): 280°F (137.77°C)
- Solder Seal Melting Temp (Maximum): 320°F (160°C)
- Waterproof Level: IP67
- Dielectric Strength: 1,000v
DETAILS:
- One step solder-and-seal process. No crimping tools required.
- Dual-wall design: Outer polyolefin with heat activated adhesive and solder interior.
- 2:1 shrinking ratio. Ideal for a wide variety of applications (automotive, marine, etc).
- Connectors are color coded for easy identification.
- Resistant to stretch and vibration.
- Kit includes high quality label of easy identification.
- RoHS & CE Compliant.
- High quality and backed by our quality guarantee since 1995.
KIT CONTENTS:

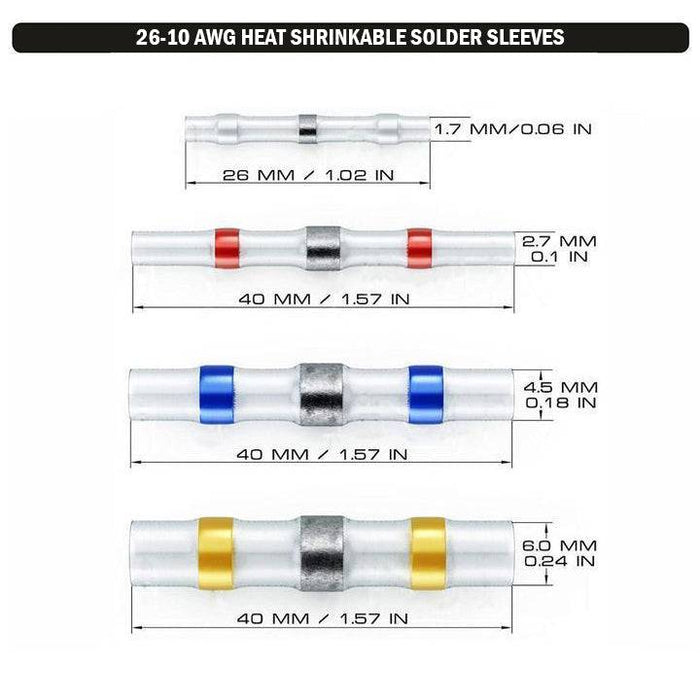

26-24 AWG | WHITE | 25 PIECES | PART #: SS2624-200J |
22-16 AWG |
RED |
35 PIECES | PART #: SS2216-150J |
16-14 AWG |
BLUE |
30 PIECES | PART #: SS1614-100J |
12-10 AWG |
YELLOW |
10 PIECES | PART #: SS1210-100J |
Cross References
Cross Reference Parts:None
