SL223-2/O-24-GN - Illuminated Twist Knob Switch - 2 Contact (2/O) - 3 Positions (1-0-2) - Green - Ferrules Direct

SL223-2/O-24-GN - Illuminated Twist Knob Switch - 2 Contact (2/O) - 3 Positions (1-0-2) - Green

$10.44 - $10.44
$10.44
$10.44 - $10.44
$10.44
SKU SL223-2O-24-GN
Disponibilidad:
en stock, listo para ser enviado
true

ILLUMINATED SELECTOR SWITCH

Illuminated selector switches provide versatile and highly visible interfaces for controlling your machines. They easily install into standard 22mm diameter cut-outs and connect to your control circuits with simple screw-clamp connections.

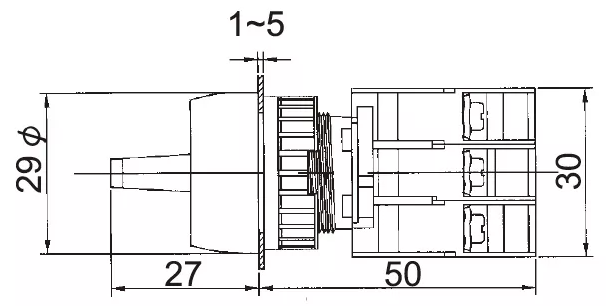

Dimensions & Features:

  • Mounting Hole: 22mm/30mm
  • Contact Type: N/O, N/C, N/O + N/C
  • Thermal Current (lth) Rating: 10A 50/60Hz
  • Insulation Voltage (Ui): 600v
  • Enclosed Thermal Current (lth): 10A
  • Short-Circuit Current: 1000A
  • AC-15 120v 6A, 240v 3A
  • AC-12 480v 1.5A, 600V 1.2A
  • DC-12 120v 2.2A, 240v 0.6A, 480v 0.4A
  • Ambient Temperature: -4°F to 140°F
  • Contact Resistance: 50mΩ Max (initial)
  • IP Rating: IP65
  • Mechanical Life: 1 Million Operations
  • Approvals: UL, CSA. TUV, CE
Type: Illuminated Twist Knob Switch
Mounting Hole Size: 22mm
Color: Green
Type of Contact: 2/0
Number of Contacts: 3
Positions: 1-0-2
Voltage Rating: 24V
Enclosure Material: Reinforced Thermoplastic
Contact Material: Silver
Protection Degree: IP 65
Storage Temperature: -40oC to 80oC
Operating Temperature: -25oC to 70oC
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Cross References

Cross Reference Parts:

None
