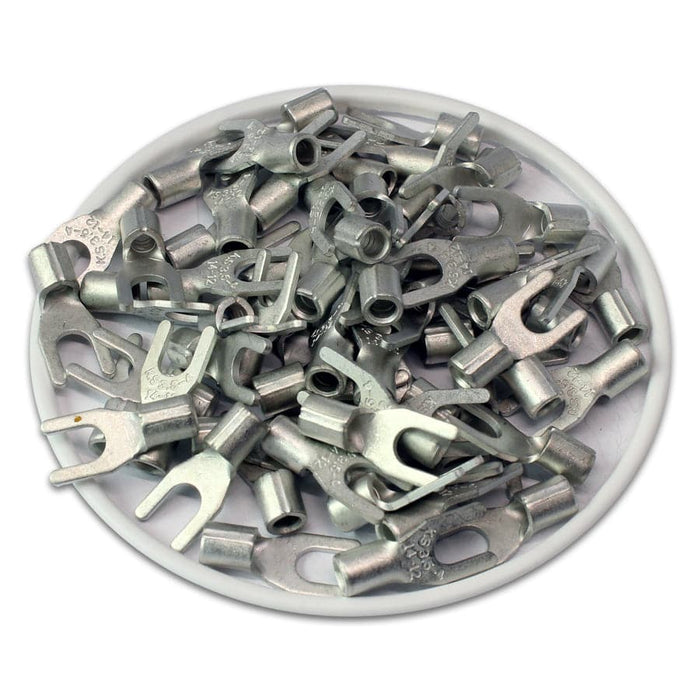

14-12 AWG Non Insulated Spade Terminals, #8 Stud, UL Approved, 100 Pieces - SNB3-4

Precio original $15.41 - Precio original $15.41
Precio original
$15.41
$15.41 - $15.41
Precio actual $15.41
SKU SNB3-4
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

NON INSULATED SPADE TERMINALS

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 14-12 AWG
Stud Size: #8 Stud
T: 0.75mm (0.03")
L: 18mm (0.71")
F: 7mm (0.28")
E: 6mm (0.24")
W: 8mm (0.31")
D: 5.1mm (0.20")
D1: 2.9mm (0.11")
D2: 4.3mm (0.17")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Amp Rating: 35A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross Reference Parts:
None
