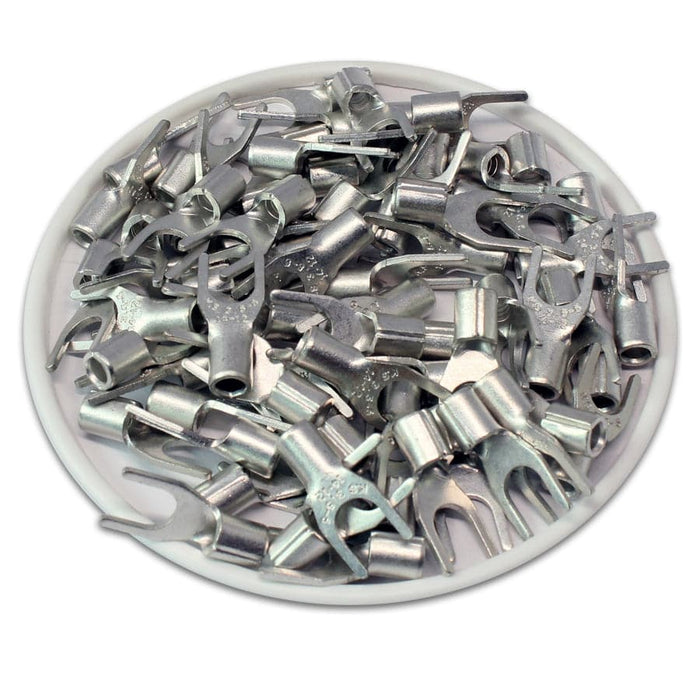

14-12 AWG Non Insulated Spade Terminals, #10 Stud, UL Approved, 100 Pieces - SNB3-5
Precio original
$14.86
-
Precio original
$14.86
Precio original
$14.86
$14.86
-
$14.86
Precio actual
$14.86
SKU SNB3-5
Disponibilidad:
en stock, listo para ser enviado
NON INSULATED SPADE TERMINALS
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 14-12 AWG |
| Stud Size: | #10 Stud |
| T: | 0.75mm (0.03") |
| L: | 18mm (0.71") |
| F: | 7mm (0.28") |
| E: | 6mm (0.24") |
| W: | 8mm (0.31") |
| D: | 5.1mm (0.20") |
| D1: | 2.9mm (0.11") |
| D2: | 5.3mm (0.21") |
| Seam: | Brazed |
| Terminal Material: | Tin-Plated Copper |
| Max Amp Rating: | 35A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
