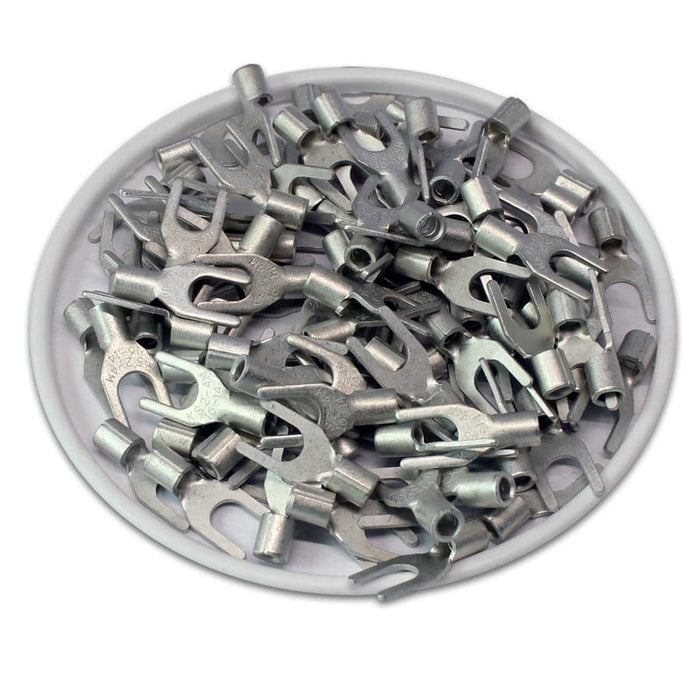

16-14 AWG Non Insulated Spade Terminals, #8 Stud, UL Approved, 100 Pieces - SNBM2-4

Precio original $8.72 - Precio original $8.72
Precio original
$8.72
$8.72 - $8.72
Precio actual $8.72
SKU SNBM2-4
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

NON INSULATED SPADE TERMINALS

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #8 Stud
T: 0.75mm (0.03")
L: 16mm (0.63")
F: 6.5mm (0.26")
E: 4.8mm (0.19")
W: 7.2mm (0.28")
D: 4.1mm (0.16")
D1: 2.3mm (0.09")
D2: 4.3mm (0.17")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Amp Rating: 30A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross Reference Parts:
None
