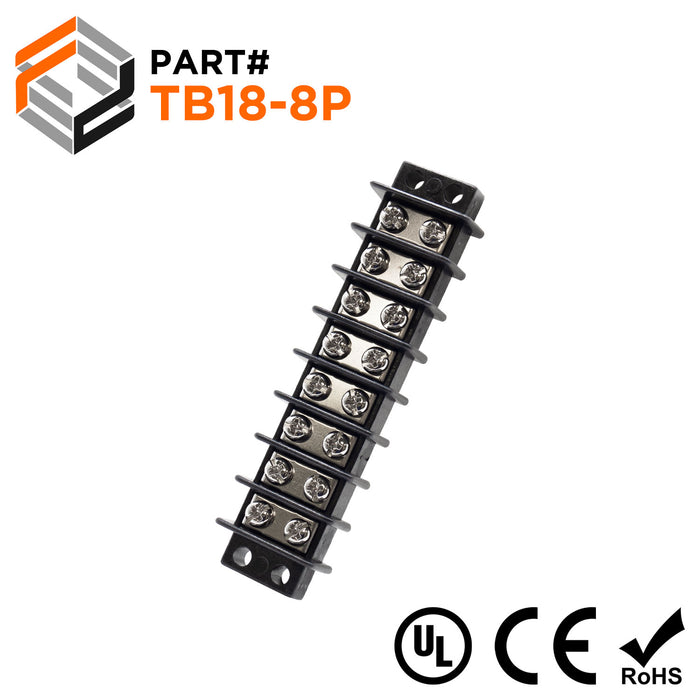

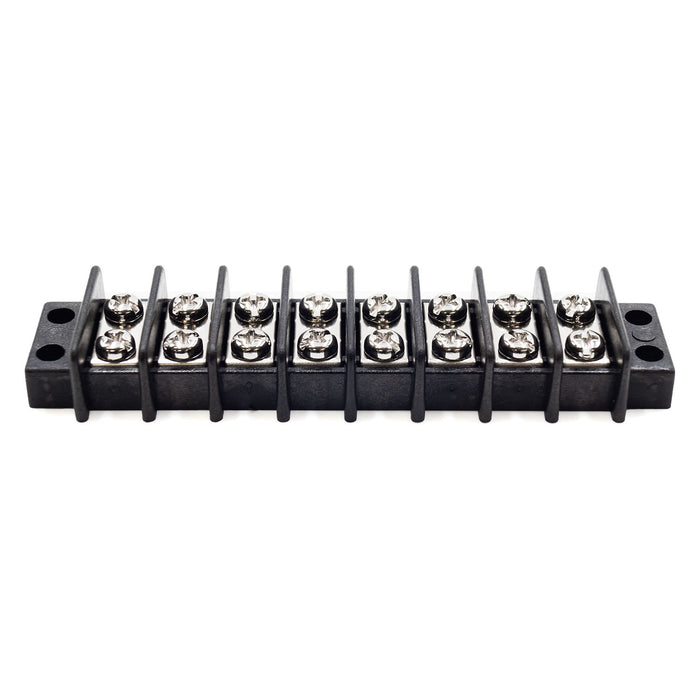

Barrier Strip Terminal Block, Terminal Strip, 8 Pole, Double Row, 20A, 300V, UL Approved - TB18-8P

Precio original $4.16 - Precio original $4.16
Precio original
$4.16
$4.16 - $4.16
Precio actual $4.16
SKU TB18-8P
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.

Dimensions & Features:

Number of Poles: 8 Poles
Pitch: 11.1mm (0.44")
A: 100.1mm (3.94")
B: 108mm (4.25")
Material: Thermoplastic UL94-V0
Electrical Rating: 300 Volts
Amp Rating: 20AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
