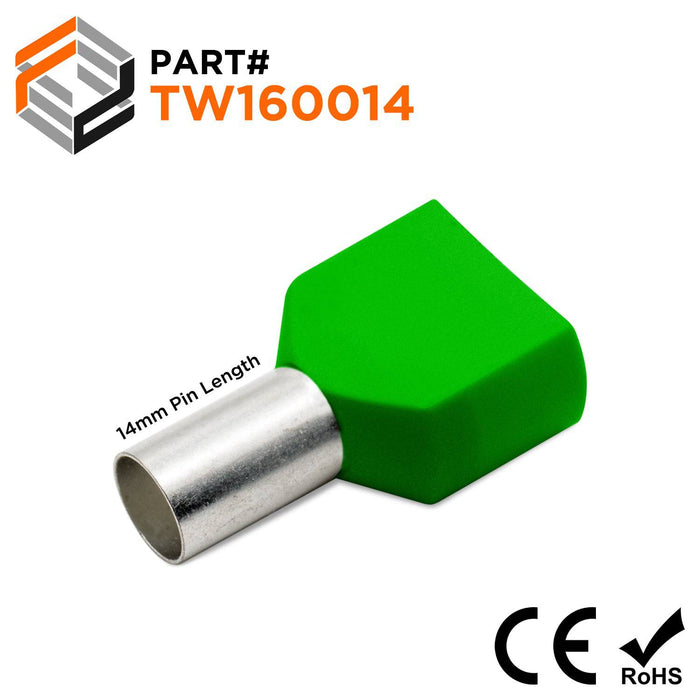

TW160014 - 2x6 AWG (14mm Pin) Twin Wire Ferrules - Green

Precio original $16.92 - Precio original $16.92
Precio original
$16.92 - $16.92
Precio actual $16.92
SKU TW160014
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 2x6 AWG
Color: Green
E: 11.4mm (0.45")
D1: 8.4mm (0.33")
D2: 18.4mm (0.72")
L1: 31.3mm (1.23")
L2: 14.0mm (0.55")
S1: 0.3mm (0.01")
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 95A
Material: Tin-Plated Copper
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUSG01946
American Electrical: 13162160
Automation Direct: BM-00563 V3AE001143
Greenlee: 877/14
Weidmuller: 9037360000
ZF: V3AE1143 V3AE001143
