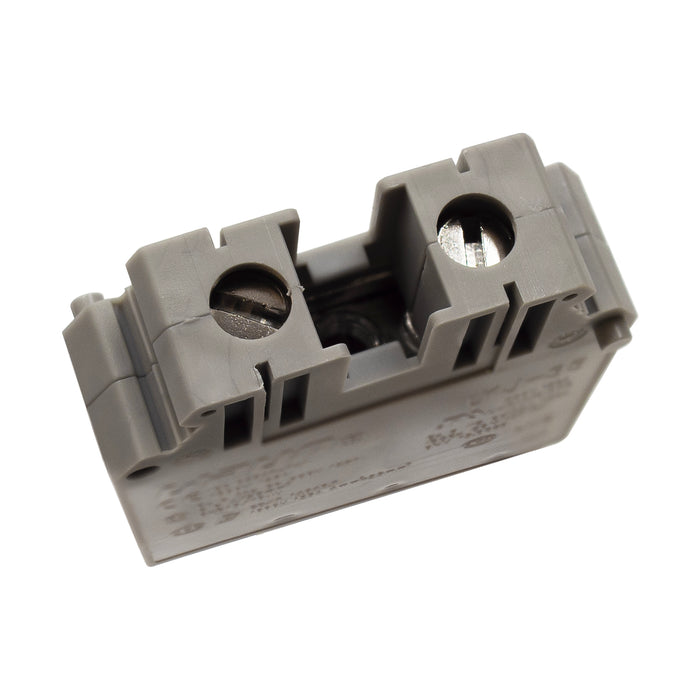

UKJ-35 - 19 to 1-1/0 AWG Screw Clamp, Feed-Thru, Terminal Block, 1000v, UL Approved, Gray

Precio original $4.44 - Precio original $4.44
Precio original
$4.44
$4.44 - $4.44
Precio actual $4.44
SKU UKJ-35
Disponibilidad:
en stock, listo para ser enviado

SCREW CLAMP TERMINAL BLOCK

FerrulesDirect proudly offers UPUN's UKJ series terminal blocks with the screw clamp, feed-thru technology. They feature a gas-tight and corrosive-free design. They work for both solid and stranded conductor, with or without ferrules. They have an efficient body size to save space in the control cabinet and can be mounted in standard DIN rail formats.

TECHNICAL DATA:

Wire Range (Stranded): 19 to 2 AWG (0.75mm2 to 35.00mm2)
Wire Range (Solid): 19 to 1-1/0 AWG (0.75mm2 to 50.00mm2)
Stripping Length: 0.63" (16mm)
Screw Thread: M6
Tightening Torque: 3.2 to 3.7
Connection Method: Screw Connection
Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Ambient Temperature: -77°F to +140°F (-25°C to +60°C)
Relative Humidity: 30% to 90%
Connection Standard: IEC 60947-7-1


DIMENSIONS:

Width 1.99" (50.5mm)
Thickness: 0.60" (15.2mm)
Height: 2.40" (61.0mm)


PRODUCT PARAMETERS:

Number of Connections: 2
Rated Cross Section (mm): 16
Color: Gray
Insulation Material: PA (Nylon)
Flame Retardant Grade: V0 (UL94)
Rated Voltage (V): 1000v
Rated Current (A): 150a
Temperature of Insulation Material: -40°F to +257°F (-40°C to +125°C)
Wire Feed: Both sides of terminal


COMPATIBLE ACCESSORIES:

Items with links are currently available for purchase. E-mail us today for availability of non-stock items.

Mounting Rail (Top Hat Type): TH35-7.5 & TH35-15
Mounting Rail (G-Type): G32-15 & G32-18
Separating Disk: UKJ-G(TS-K)
Fixed Bridge (2 Position): UFBI2-15
Fixed Bridge (3 Position): UFBI3-15
Fixed Bridge (10 Position): UFBI10-15
Insulated Fixed Bridge (2 Position): UFBI2-15N
Insulated Fixed Bridge (3 Position): UFBI3-15N
Insulated Fixed Bridge (10 Position):
UFBI10-15N
Insertion Bridge (2 Position): UEB2-15
Insertion Bridge (10 Position): UEB10-15
Marker Strip (Blank): UZB10-10(Blank)
Marker Strip (Horizontal):
UZB10-10(Horizontal)
Marker Strip (Vertical): UZB10-10(Vertical)
Screwdriver: YB1.0x6.5



MOUNTING RAIL TYPE:




DOCUMENT FILE:





COMPARE TO THESE PARTS:
