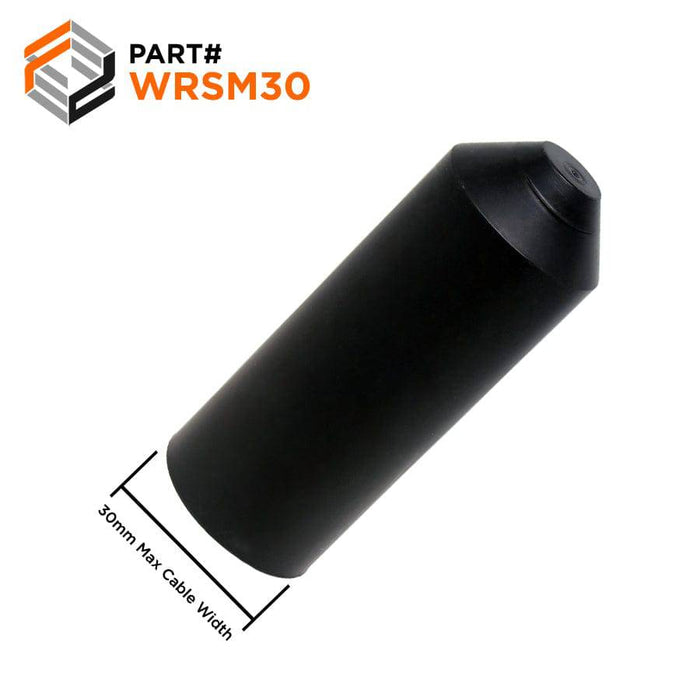

WRSM30 - Heat Shrinkable End Cap - 30/16mm (1.18/.63")
Precio original
$2.12
-
Precio original
$2.12
Precio original
$2.12
$2.12
-
$2.12
Precio actual
$2.12
SKU WRSM30
Disponibilidad:
en stock, listo para ser enviado
Heat shrinkable end caps are used for a variety of applications such as sealing off exposed wire ends and providing resistance to chemical corrosion and abrasion. They are lined with hot melt adhesive that offers feed-thru terminal insulation and complete sealing/waterproofing.
Dimensions & Features:
| Size: | 30/16mm (1.18"/0.63") |
| Length (L): | 93.5mm (3.68") |
| Diameter (D) (As Supplied): | 30mm (1.18") |
| Diameter (W) (After Shrink): | 16mm (0.63") |
| Material: | Flexible Polyolefin |
| Operating Temperature: | -49oF to 257oF (-45oC to 125oC) |
| Non Corrosive: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
