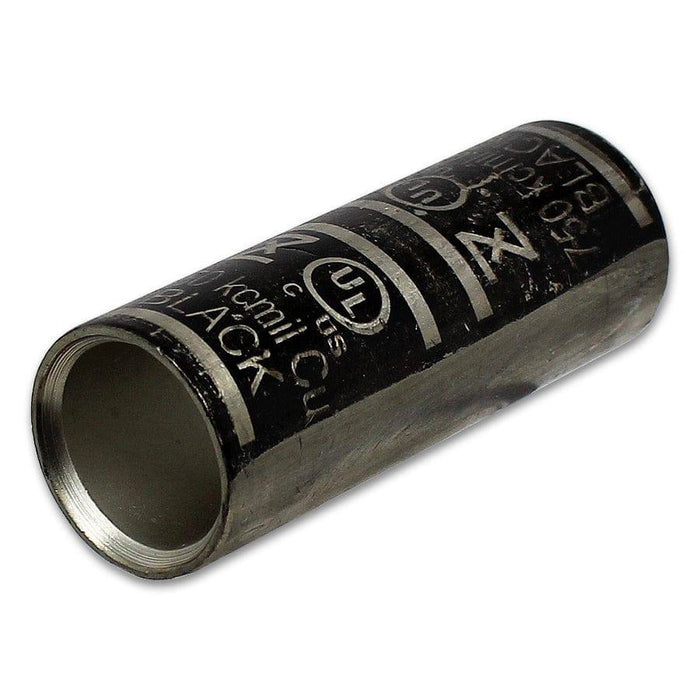

ZCC-17 - 750MCM Short Barrel Splice - Black, 1 Piece
Precio original
$16.08
-
Precio original
$16.08
Precio original
$16.08
$16.08
-
$16.08
Precio actual
$16.08
SKU ZCC-17
Quantity: 1 Piece
Disponibilidad:
en stock, listo para ser enviado
Short barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 750MCM |
| Color: | Black |
| L: | 88.01mm (3.46") |
| D: |
33.02mm (1.30") |
| D1: | 26.8mm (1.05") |
| Barrel: | Seamless |
| Material: | Tin Plated Copper |
| Voltage Rating: | 600V |
| Max Electrical Current: | 475 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
