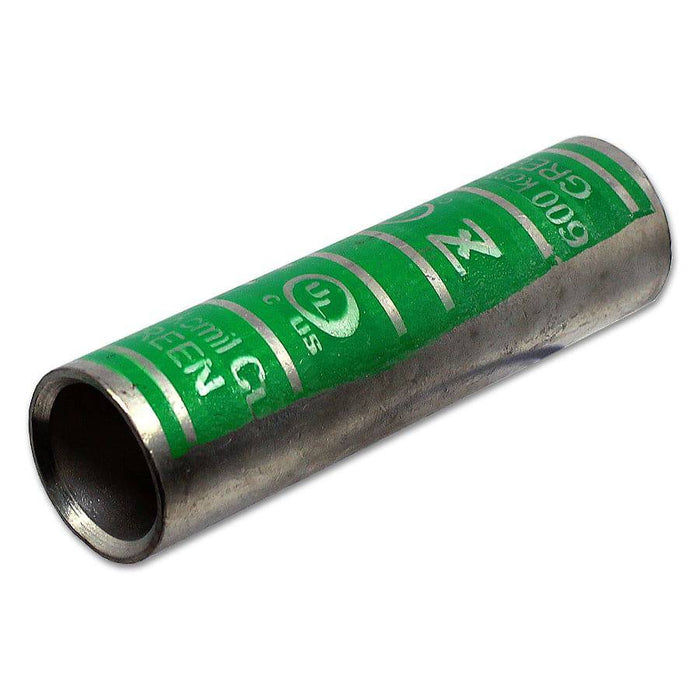

ZCC-33 - 600MCM Long Barrel Splice - Green, 1 Piece
Precio original
$19.91
-
Precio original
$19.91
Precio original
$19.91
$19.91
-
$19.91
Precio actual
$19.91
SKU ZCC-33
Quantity: 1 Piece
Disponibilidad:
en stock, listo para ser enviado
Long barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 600MCM |
| Color: | Green |
| L: | 106.6mm (4.2") |
| D: |
29.9mm (1.18") |
| D1: | 23.3mm (0.92") |
| Barrel: | Seamless |
| Material: | Tin Plated Copper |
| Voltage Rating: | 600V |
| Max Electrical Current: | 420 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
