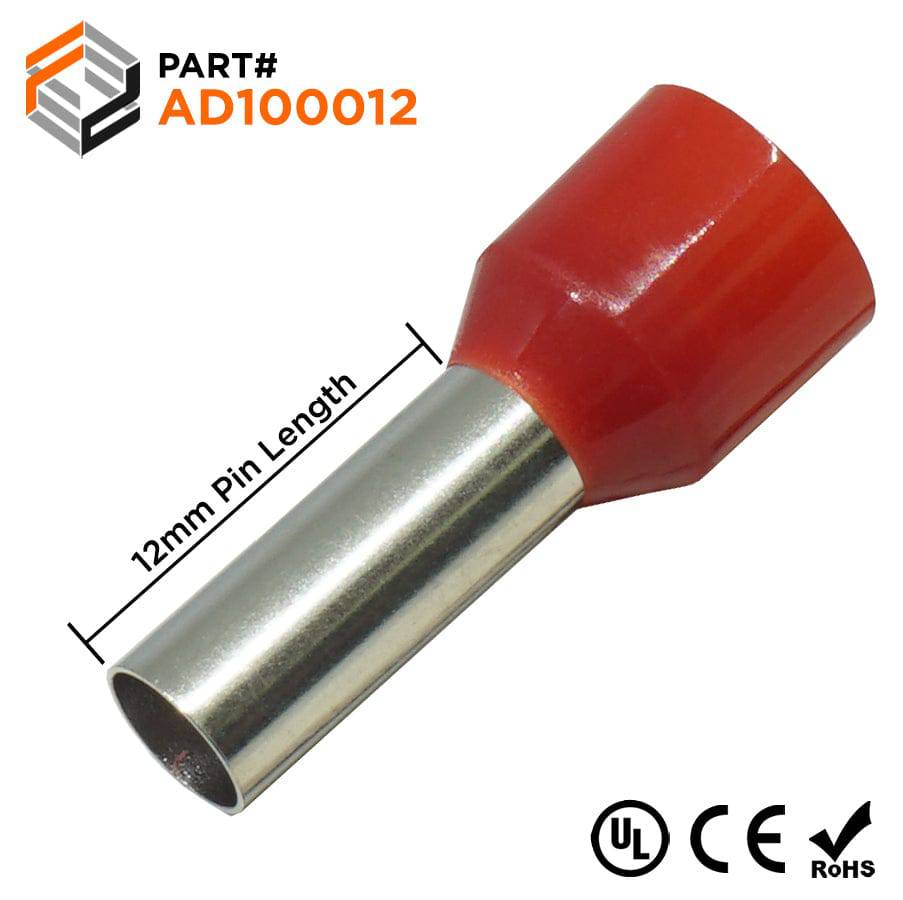

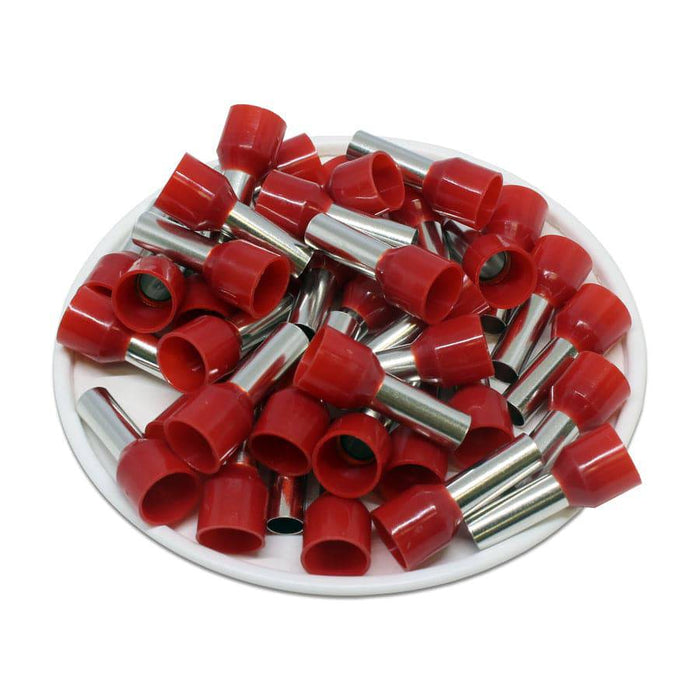

8 AWG (12mm Pin) Insulated Ferrules - Red

Sold out
$5.05
SKU AD100012
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 8 AWG
Color: Red
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 70A
L1: 22.0mm (0.86")
L2: 12.0mm (0.47")
D: 4.9mm (0.19")
D1: 4.5mm (0.17")
D2: 7.6mm (0.30")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: 30446503
Altech Corp: 2853.0 FID0812
American Electrical: 11121100
Automation Direct: BM-00612
Eclipse: 701-086
Elecdirect: FER-8-12C
Greenlee: 476/12
McMaster-Carr: 7950K49 7950K51
Panduit: FSD83-12-C
Phoenix Contact: 3200551
SPC Technology: SPC4528 84N2062
TE Connectivity: 2-966067-4
Thomas Betts: F2043
Tyco AMP: 2-966 067-4
WAGO: 216-209
Weidmuller: 9019240000
Wieland: 06.600.3127.0
ZF: V3AE0060

Documents

Click to view product spec sheet:
