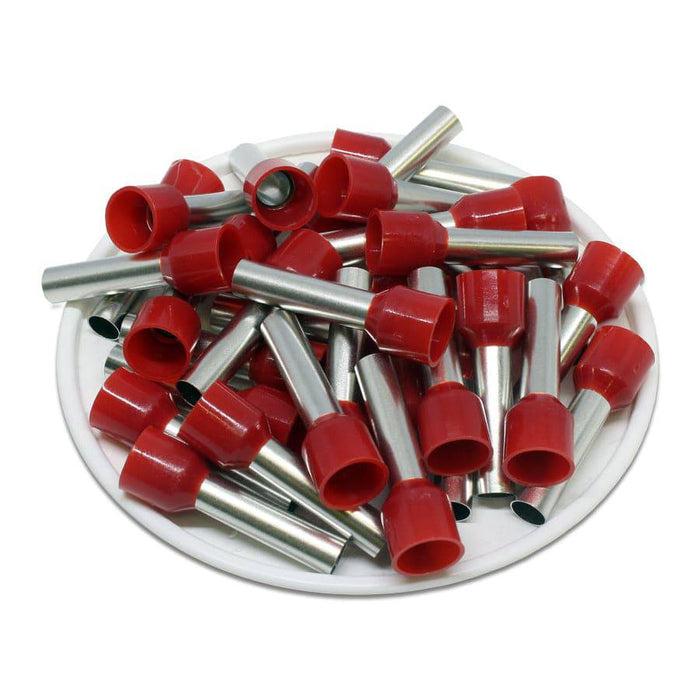

AD100018 - 8 AWG (18mm Pin) Insulated Ferrules - Red
Original price
$6.74
-
Original price
$6.74
Original price
$6.74
$6.74
-
$6.74
Current price
$6.74
SKU AD100018
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 8 AWG |
| Color: | Red |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 70A |
| L1: | 28.0mm (1.10") |
| L2: | 18.0mm (0.71") |
| D: | 4.9mm (0.19") |
| D1: | 4.5mm (0.17") |
| D2: | 7.6mm (0.30") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
ABB: 30446604
Altech Corp: 2854.0 FID0818
American Electrical: 11181100
Automation Direct: BM-00613 V3AE000061
Burndy/Hubbell: YF0818ID 10098081
Greenlee: 476/18
McMaster-Carr: 7950K36 7950K143
Panduit: FSD83-18-C
Phoenix Contact: 3200616
Thomas Betts: F2044
Tyco AMP: 2-966 067-5
WAGO: 216-289
Weidmuller: 9019250000
Wieland: 06.600.3227.0
ZF: V3AE0061 V3AE000061
Documents
Click to view product spec sheet:
