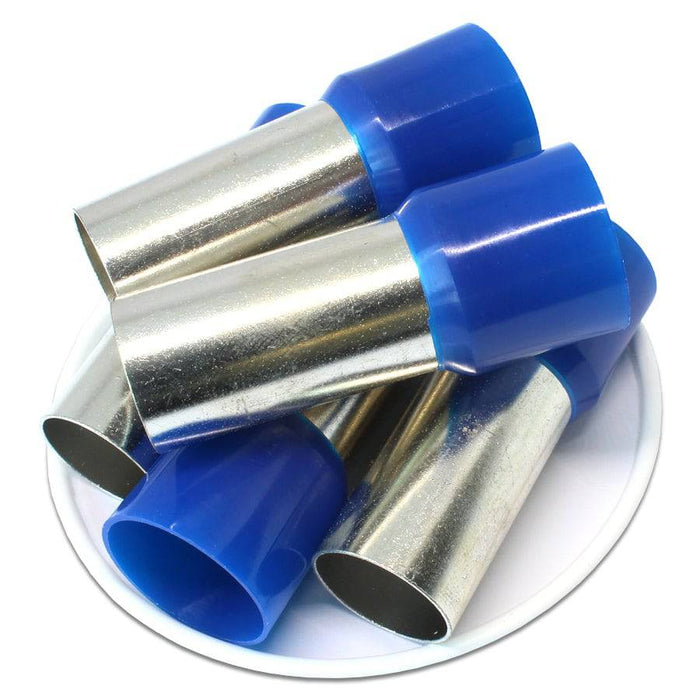

4/0 AWG (32mm Pin) Insulated Ferrules - Blue
Original price
$22.77
-
Original price
$22.77
Original price
$22.77
$22.77
-
$22.77
Current price
$22.77
SKU AD1200032
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
:Crimp Supply: 13A11024
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 4/0 AWG |
| Color: | Blue |
| L1: | 52.6mm (2.07") |
| L2: | 32.0mm (1.26") |
| D: | 17.7mm (0.69") |
| D1: | 16.7mm (0.65") |
| D2: | 20.3mm (0.79") |
| Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 360A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:Crimp Supply: 13A11024
Documents
Click to view product spec sheet:
