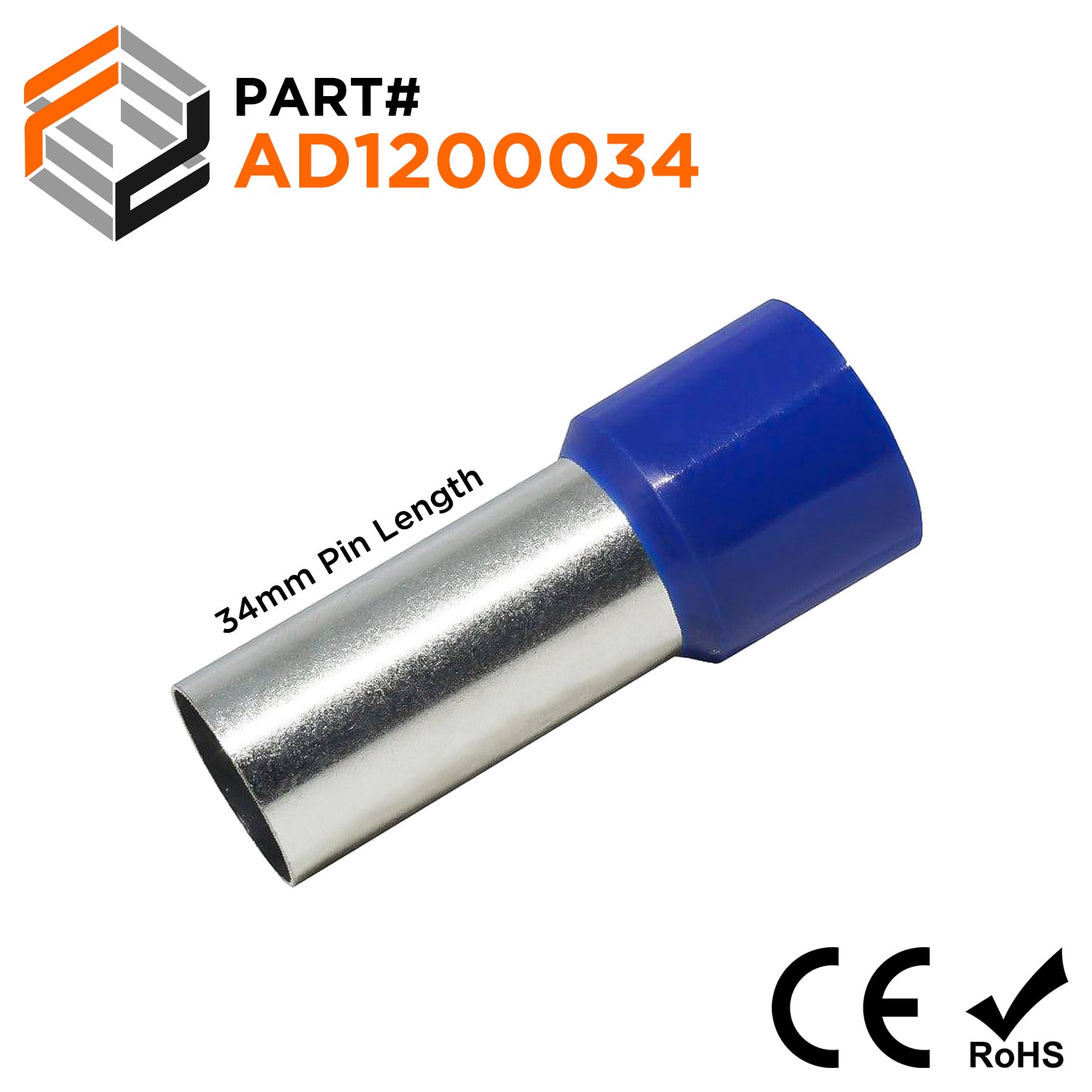

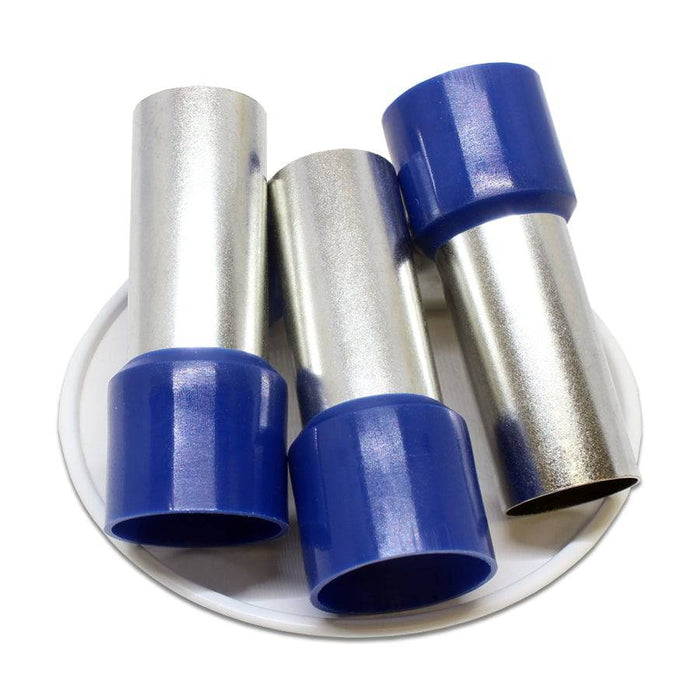

4/0 AWG (34mm Pin) Insulated Ferrules - Blue

$24.68
SKU AD1200034
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 4/0 AWG UL Approved: Yes
Color: Blue CE Certified: Yes
L1: 54.6.6mm (2.15") RoHS Compliant: Yes
L2: 34.0mm (1.34") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 17.7mm (.697") Max Electrical Current: 360A
D1: 16.7mm (.657") Material: Tin Plated Copper
D2: 20.3mm (.799")

TECHNICAL DRAWING


Cross Reference:

Click to view data sheet

How to Crimp a Wire Ferrule?
