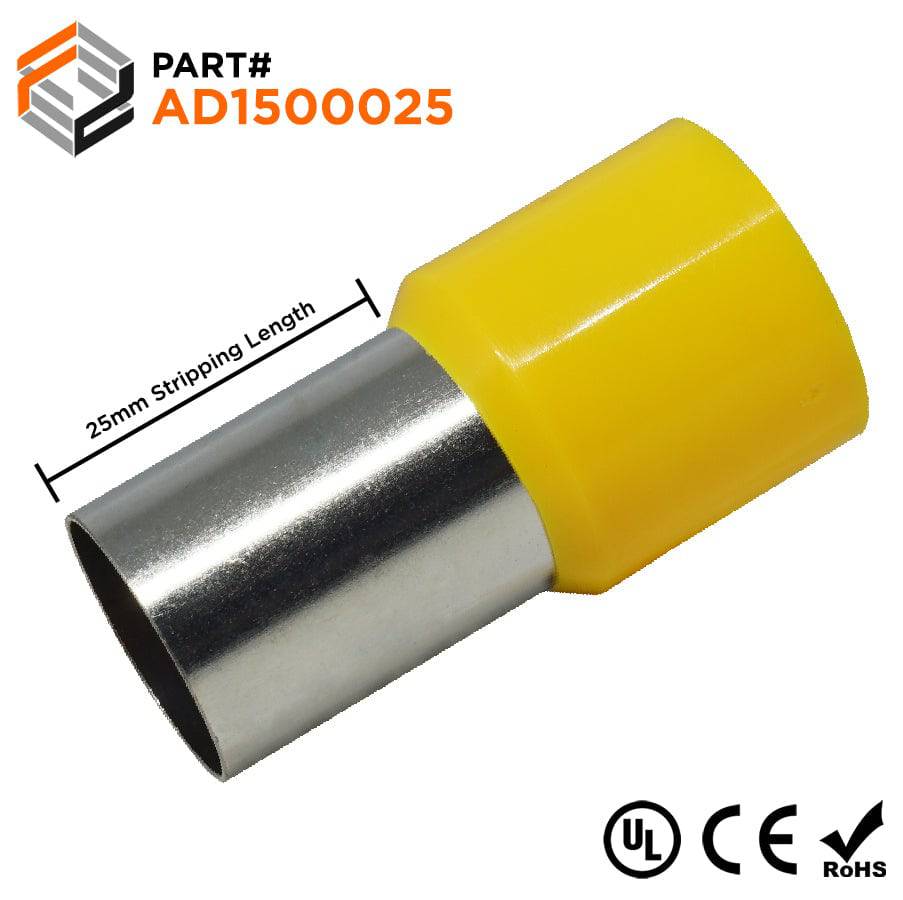

300MCM (25mm Pin) Insulated Ferrules - Yellow

$25.32
SKU AD1500025
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 300MCM UL Approved: Yes
Color: Yellow CE Certified: Yes
L1: 50.6mm (1.99") RoHS Compliant: Yes
L2: 25.0mm (.984") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 20.6mm (.811") Max Electrical Current: 405A
D1: 19.6mm (.772") Material: Tin Plated Copper
D2: 23.4mm (.921")

TECHNICAL DRAWING

Cross Reference Parts:

None

Click to view data sheet

How to Crimp a Wire Ferrule?
