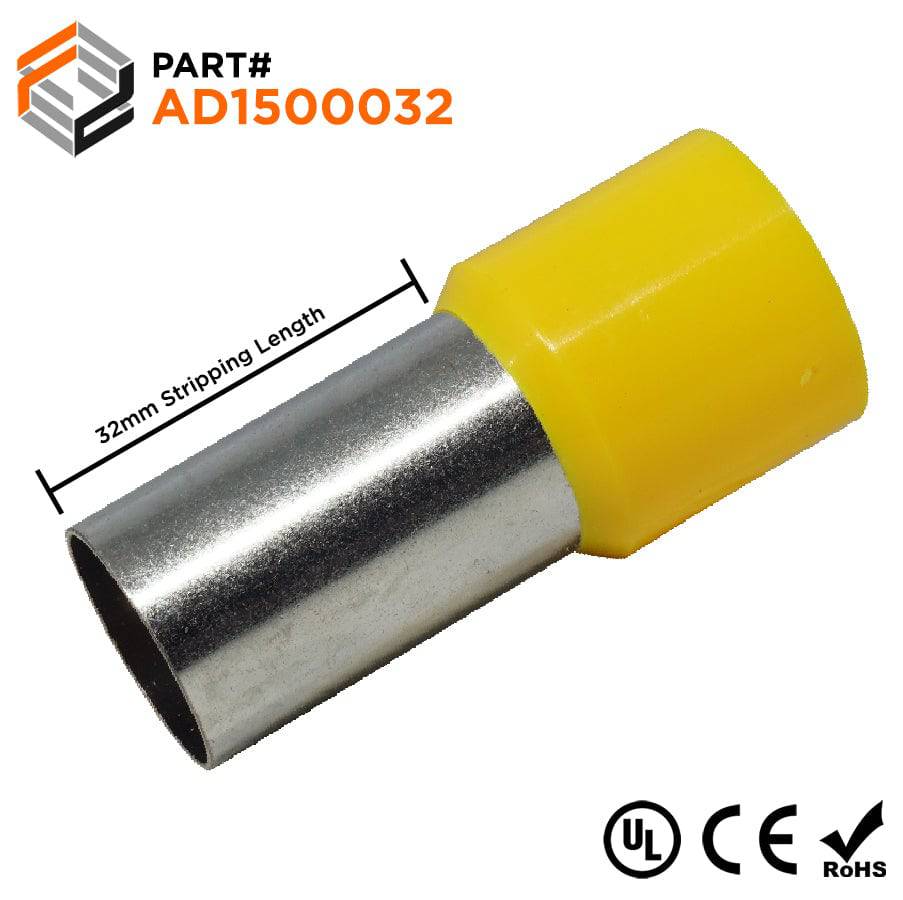

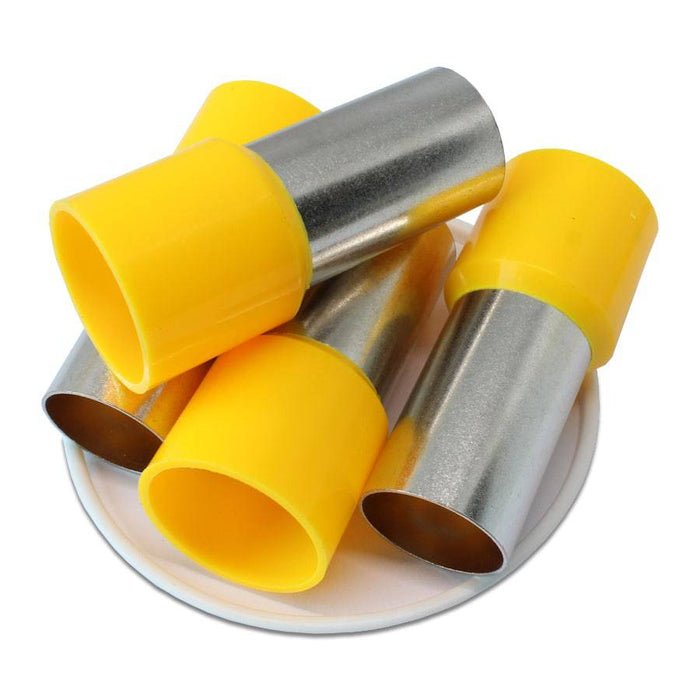

300MCM (32mm Pin) Insulated Ferrules - Yellow
Original price
$30.54
-
Original price
$30.54
Original price
$30.54
$30.54
-
$30.54
Current price
$30.54
SKU AD1500032
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
Crimp Supply: 13A11025
Certifications:
UL Certification
Reach Certification
RoHS3 Certification
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 300MCM |
| Color: | Yellow |
| L1: | 57.6mm (2.27") |
| L2: | 32.0mm (1.26") |
| D: | 20.6mm (0.81") |
| D1: | 19.6mm (0.77") |
| D2: | 23.4mm (0.92") |
| Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 405A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:Crimp Supply: 13A11025
Documents
Click to view product spec sheet:Certifications:
UL Certification
Reach Certification
RoHS3 Certification
