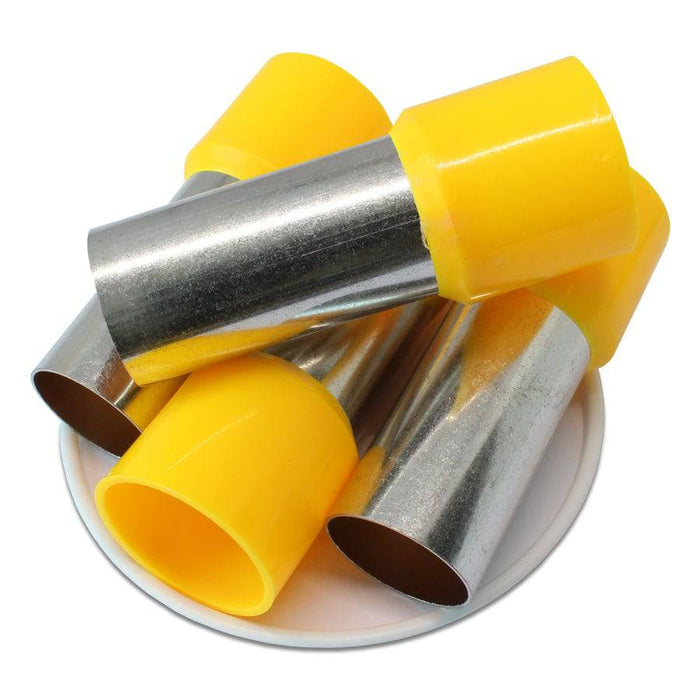

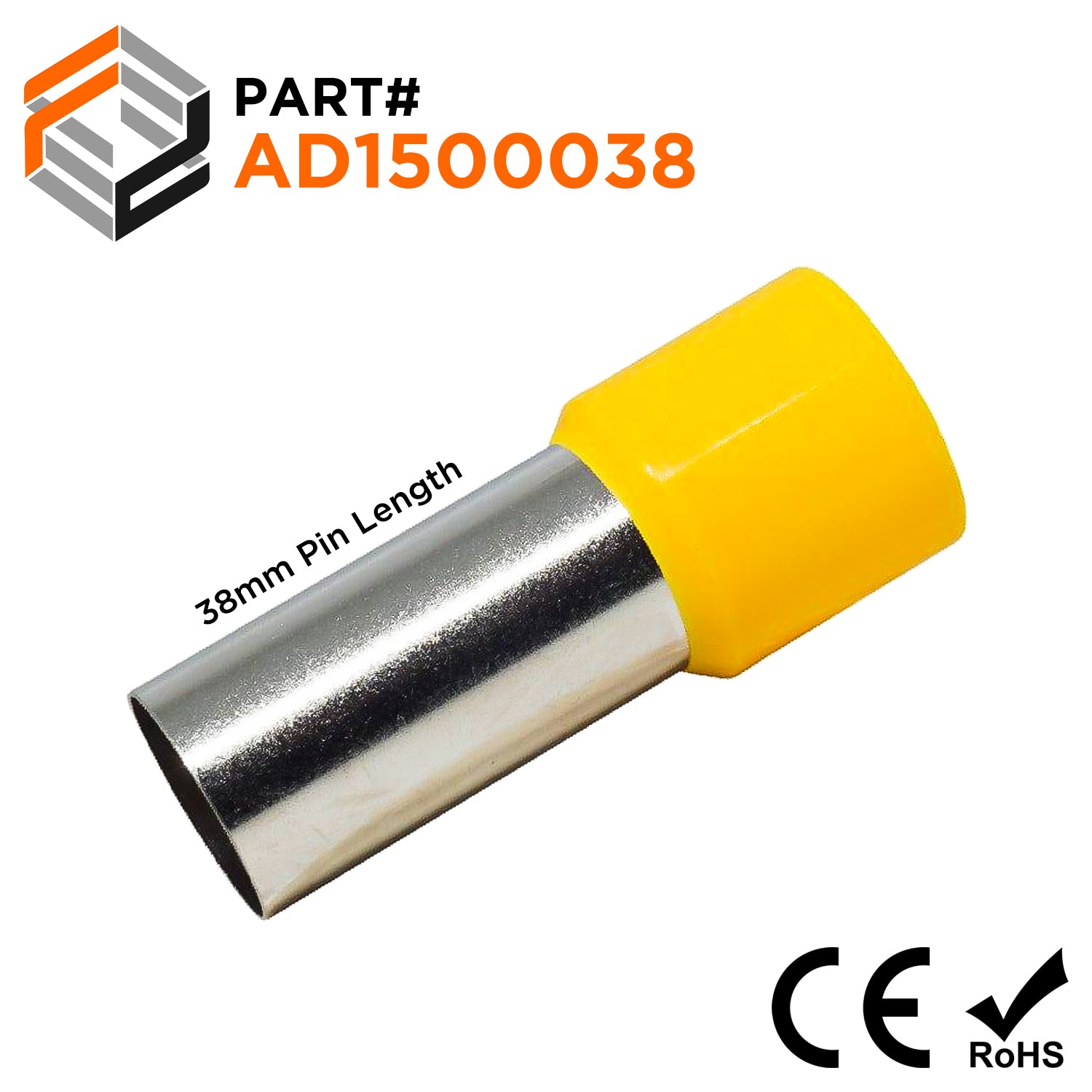

300MCM (38mm Pin) Insulated Ferrules - Yellow

$36.87
SKU AD1500038
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 300MCM
Color: Yellow
L1: 63.6mm (2.50")
L2: 38.0mm (1.50")
D: 20.6mm (0.81")
D1: 19.6mm (0.77")
D2: 23.4mm (0.92")
Material: Tin-Plated Copper
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 405A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:





Cross References

Cross Reference Parts:
ABB: XUSD01924
Altech Corp: 2789
American Electrical: 113221500
Crimp Supply: 13A11025
Tyco AMP: 4-966 292-2
Weidmuller: 9028230000
ZF: V3AE3102

Documents

Click to view product spec sheet:

Certifications:
UL Certification
Reach Certification
RoHS3 Certification

Videos

Learn how to crimp a wire ferrule!
