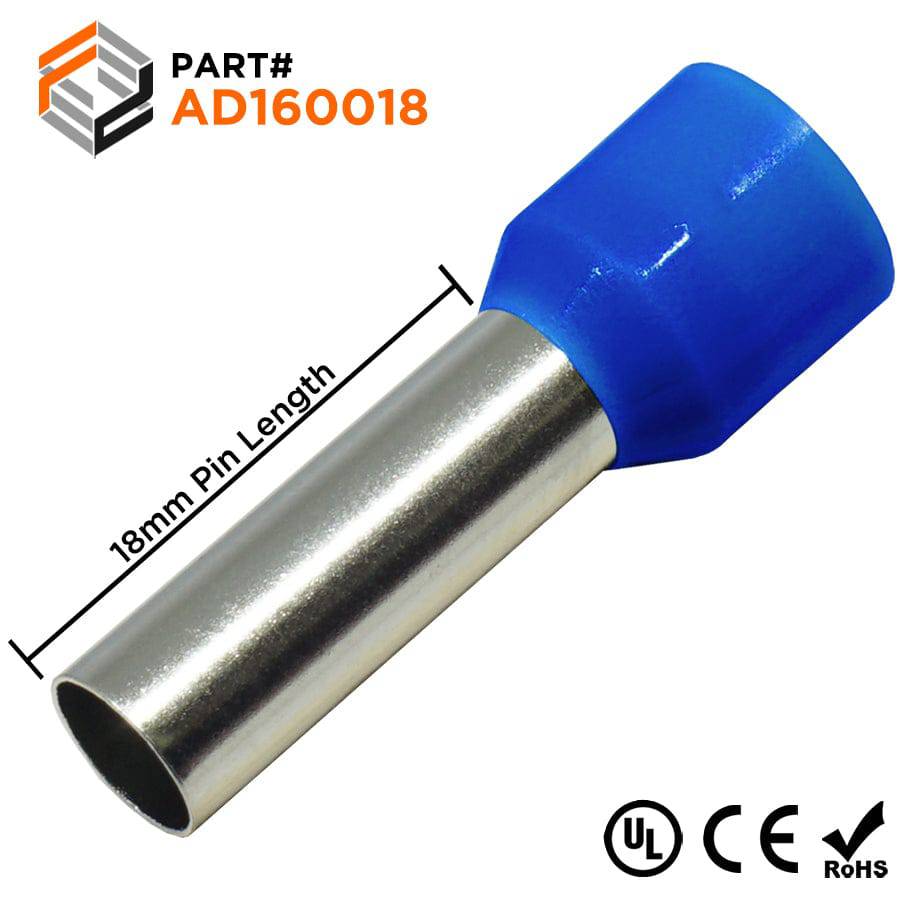

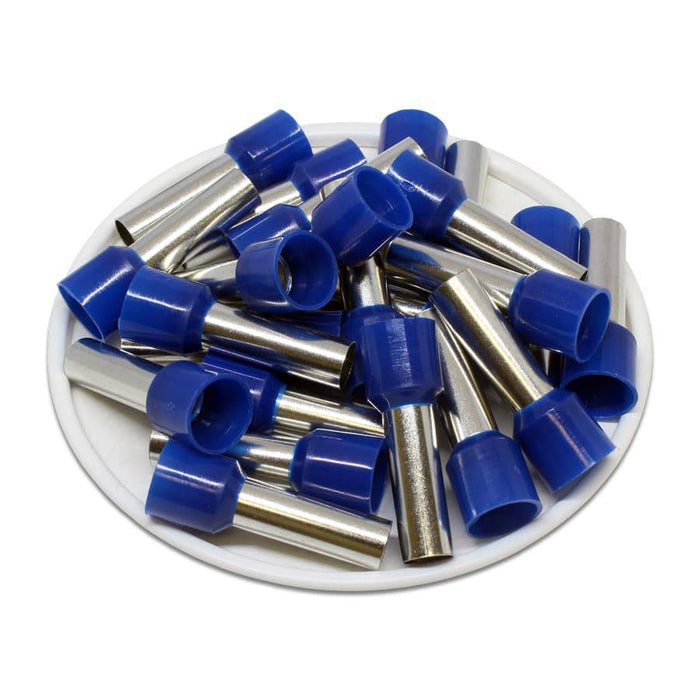

6 AWG (18mm Pin) Insulated Ferrules - Blue

$7.45
SKU AD160018
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 6 AWG UL Approved: Yes
Color: Blue CE Certified: Yes
L1: 28.0mm (1.10") RoHS Compliant: Yes
L2: 18.0mm (.709") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 6.2mm (.244") Max Electrical Current: 95A
D1: 5.8mm (.288") Material: Tin Plated Copper
D2: 8.8mm (.346")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: 30446816
AlliedElec: 342-0035
Altech Corp: 2856.0 FID0618
American Electrical: 11181160
AUTOMATION DIRECT: BM-00615
Festo: 13069360
Greenlee: 477/18
McMaster-Carr: 7950K38 7950K145 7950K54
Panduit: FSD84-18-C
Phoenix Contact: 3200629
SPC Technology: SPC4531 84N2065
Thomas Betts: F2046
Tyco AMP: 2-966 067-7
WAGO: 216-210
Weidmuller: 9019270000
Wieland: 06.600.3427.0
ZF: V3AE0063
