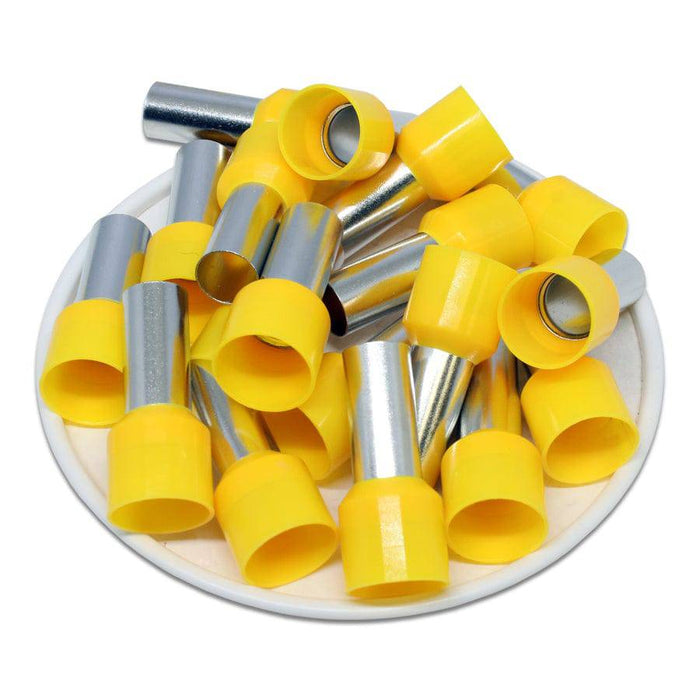

4 AWG (16mm Pin) Insulated Ferrules - Yellow

$10.87
SKU AD250016
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 4 AWG UL Approved: Yes
Color: Yellow CE Certified: Yes
L1: 28.0mm (1.10") RoHS Compliant: Yes
L2: 16.0mm (.630") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 7.7mm (.303") Max Electrical Current: 125A
D1: 7.3mm (.287") Material: Tin Plated Copper
D2: 11.2mm (.441")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: XUSD01891
Altech Corp: FID0416
American Electrical: 11161250
AUTOMATION DIRECT: BM-00616
Greenlee: 478/16
McMaster-Carr: 7950K39 7950K146
Panduit: FSD85-16-L
Phoenix Contact: 3200577
Thomas Betts: F2047
Tyco AMP: 2-966 067-8
Weidmuller: 9019280000
ZF: V3AE0064
