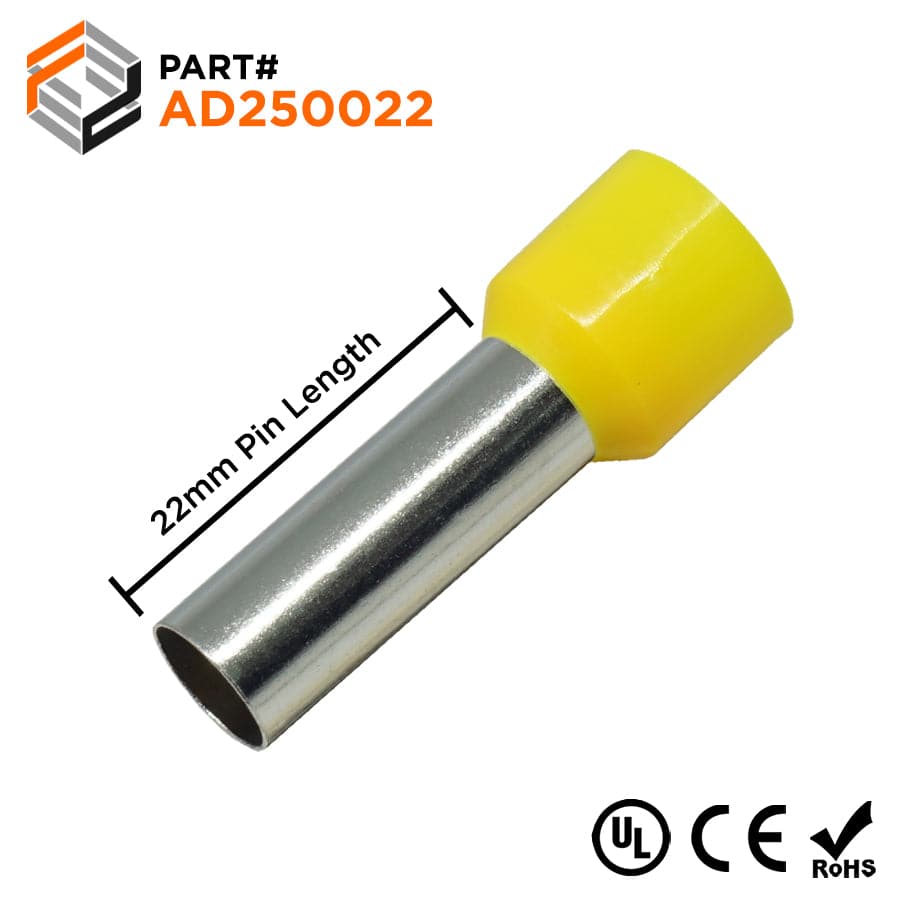

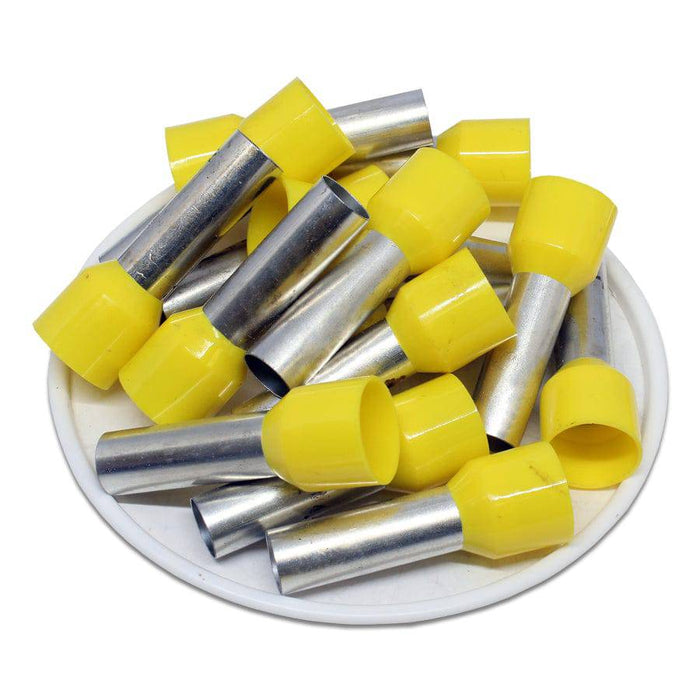

4 AWG (22mm Pin) Insulated Ferrules - Yellow

SKU AD250022
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Wire Size: 4 AWG UL Approved: Yes
Color: Yellow CE Certified: Yes
L1: 36.0mm (1.42") RoHS Compliant: Yes
L2: 22.0mm (.866") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 7.7mm (.303") Max Electrical Current: 125A
D1: 7.3mm (.287") Material: Tin Plated Copper
D2: 11.2mm (.441")


Cross Reference Parts:

ABB: XUSD01896
Altech Corp: 2858.0 FID0422
American Electrical: 11221250
Greenlee: 478/22
McMaster-Carr: 7950K1 7950K147
Panduit: FSD85-22-L
Phoenix Contact: 3200700
Thomas Betts: F2049
Tyco AMP: 3-966 067-0
Weidmuller: 9019300000
ZF: V3AE0066
